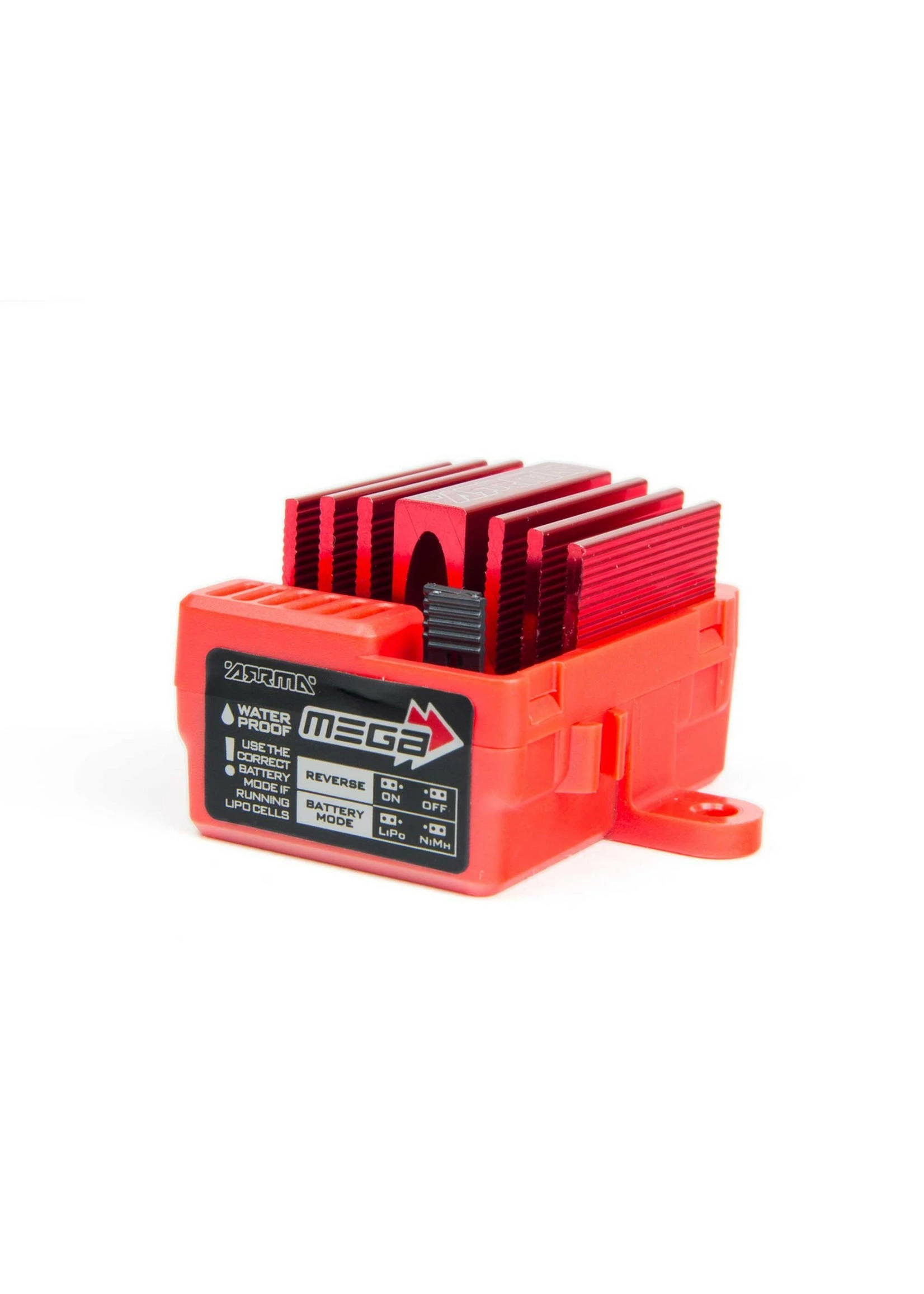

Arrma ARA390288 – Mega Brushed 2S ESC

Arrma ARA390288 – Mega Brushed 2S ESC

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.

Features:

• Fitted with reliable IC3 connector
• Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions
• Cool-looking integrated red anodized heatsink for increased heat dissipation
• Durable motor and battery connection cables for safe and reliable power transfer
• Waterproof power switch
• Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit
• Etched ‘ARRMA’ livery for cool looks and quality assurance

Specs:

Battery usage: 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo
Low Voltage Cut-Off (LVC): 3.2V per cell
Thermal Protection Temperature: 95°C / 203°F
BEC Voltage: 5V
BEC Current: 2A
ESC Length: 47mm / 1.85″
ESC Height: 21mm / 0.83″
ESC Width: 34mm / 1.34″
ESC Weight: 70g / 2.47oz
Receiver Wire Length: 160mm / 6.3″
Battery Wire Length: 90mm / 3.54″

Includes:

1 x ARRMA MEGA Brushed ESC
