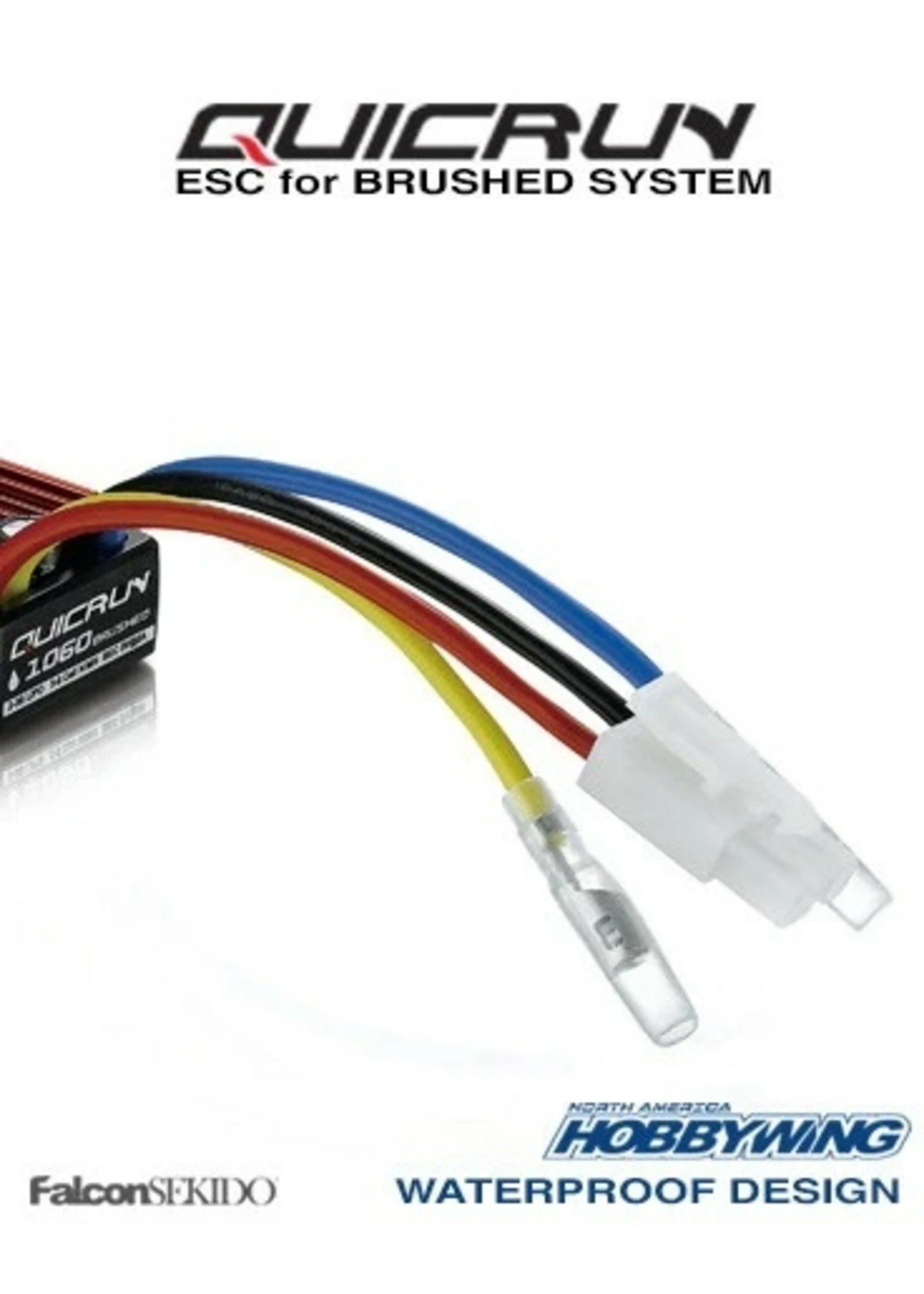

Hobbywing 30120201 – Quicrun Brushed ESC – QuicRun 1060

Original price was: $29.99.Current price is: $20.99.

Water-proof and dust-proof, suitable for all weather races.
Small size, with built-in capacitor module.
Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.

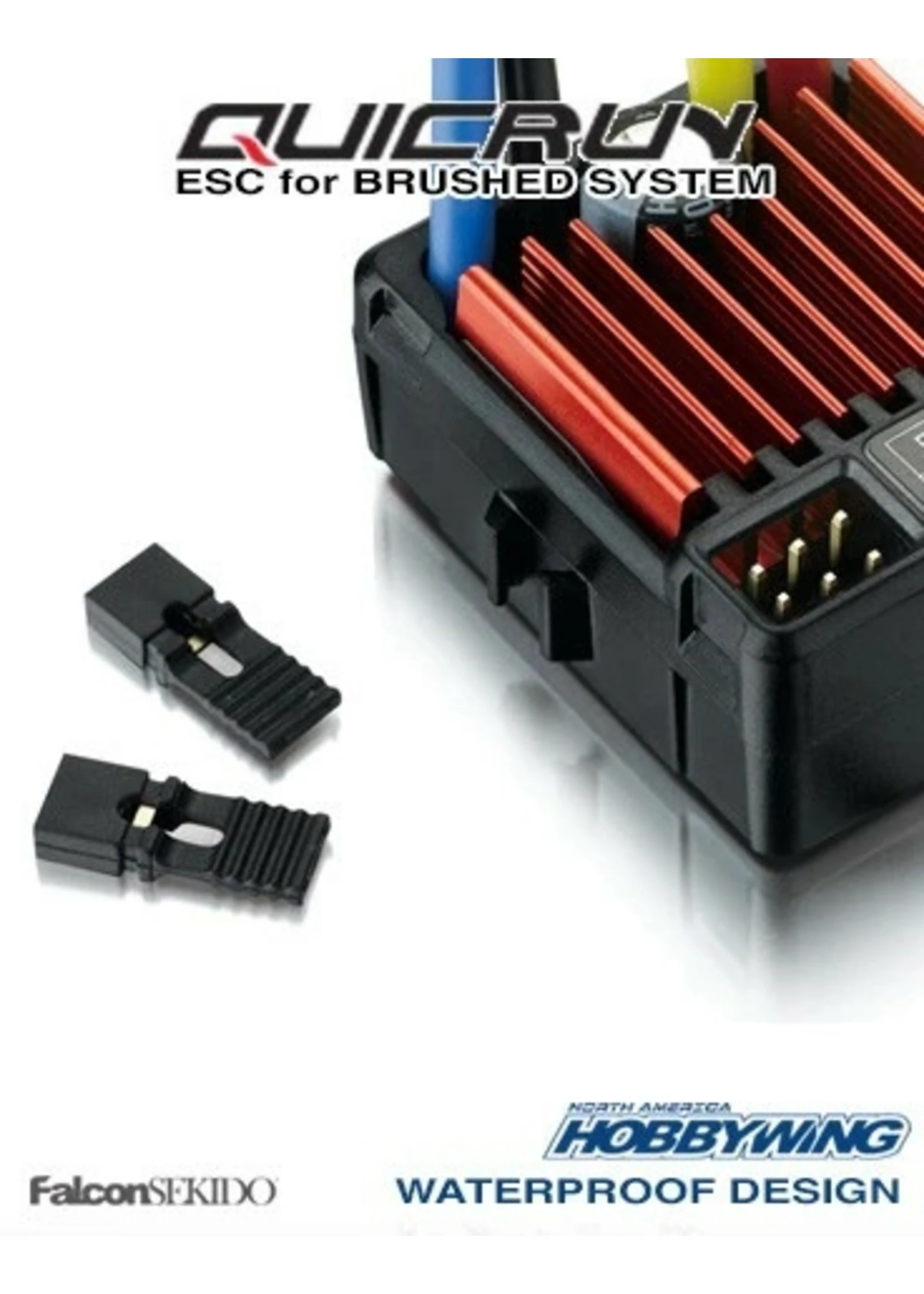

ESC parameters are easy to set with jumpers.
Multiple protections:

Risk Free manufacturer’s limited warranty available through Authorized Dealers in North America

Specs:

Model / SKU	QUICRUN-WP-1060 BRUSHED / 30120201
Fwd Cont. Current /Peak Current/ Resistance	60A/360A/0.001Ω
Rev Cont. Current /Peak Current/ Resistance	30A/180A/0.002Ω
Motor Type Supported	Brushed Motor
Car Applicable	1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Suitable Battery Brushed Motor Limit	For 2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ≥12T, Or RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
BEC Output	2A/5V (Switch Mode)
PWM Frequency	1KHz
Size/ Weight	35.5(L)32.18(W)18(H) / 39g
Running Modes	Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Cooling Fan	No need
