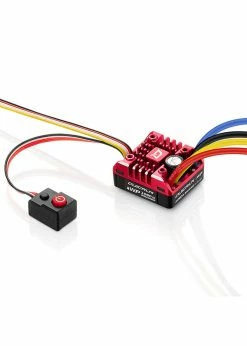

HobbyWing 30120202 – Quicrun 1080 G2 Crawler ESC, Brushed (80A)
Features:
- Fully Water-proof and dust-proof, suitable for all-weather races.
- Small in size, with a built-in capacitor module.
- Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
- In the first “real car mode” The direction of the motor is switchable in real time by using the idle channel on the remote control.
- Real-Time Adjustment of Drag Braking Force.
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.Â
- Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
- Automatic throttle range calibration, easy to use.
- Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection, and much more
- Risk-Free manufacturer’s limited warranty available through Authorized Dealers in North America
- WP-1080 G2 ESC VS WP-1080 (G1)
BEC output can go up to 8.4V
Real-Time Adjustment of Drag Braking Force.
Real Car Mode
New Aluminum case
Specs:
| Brushed ESC | WP 1080 G2Â Â |
| p/n | 30120202 |
| Waterproof | Yes |
| Dual Mode | No |
|
Fwd Cont. / Peak Rev Cont. / Peak |
80A / 400A |
| Car Applicable | 1/10Â Rock Crawler |
| Motor Limit | Brushed Motors 540/550 Series 2S LiPo or 5S NiMH 3S LiPo or 9S NiMH |
| Battery | 2-3S LiPo or 5-9S NiMH |
| BEC Output | 6V/7.4V/8.4V @ 4A (switch-mode) |
| PWM Frequency | Adjustable 1K/2K/4K/8K/16K |
| Wires | 14AWG-200mm w/ XT60 Connector |
| Size/ Weight | 37.2(L)* 31.9(W)*18.4(H) (without fan) |
| External Program Port | Separate Port Available |
| Programming | LED Program card |
| Cooling Fan | Â |
| Weight* | 70.2g w/ wire and connectors |
