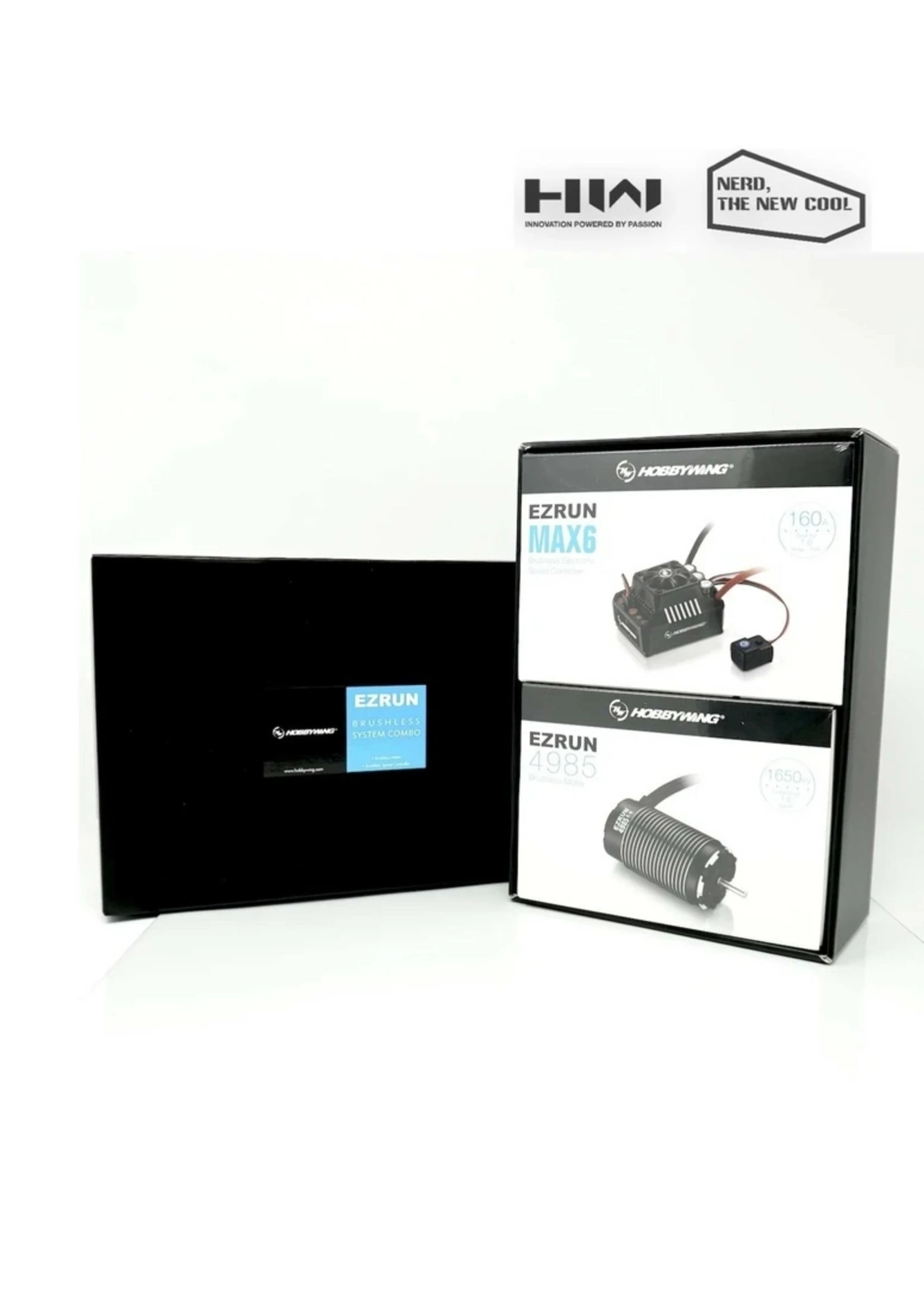

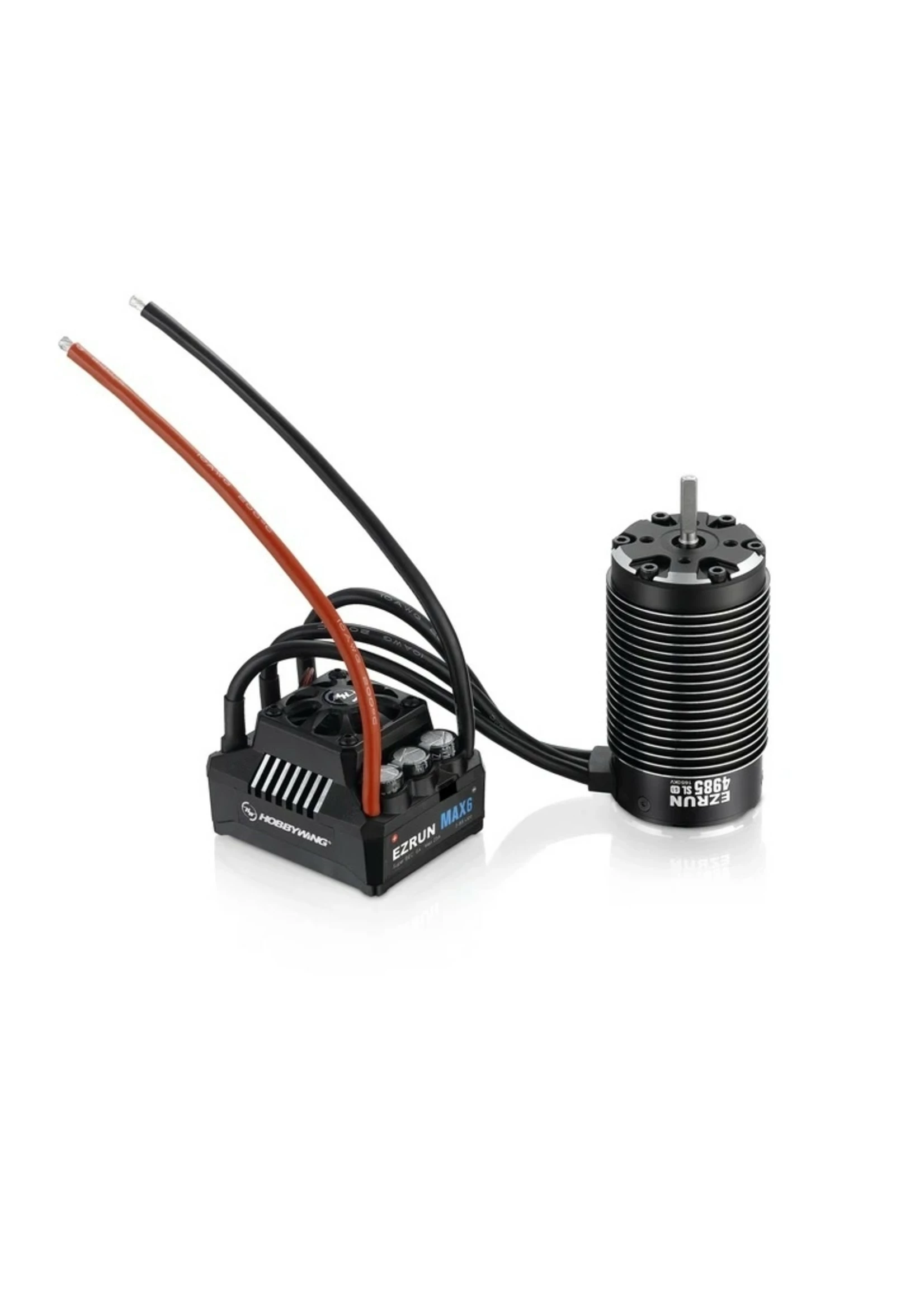

Hobbywing 38010801 – EzRun Max6 Combo – 4985SL-1650KV/Max6

HobbyWing – 38010801 – EzRun Max6 Combo – 4985SL-1650KV/Max6

ULTIMATE SPEED & POWER for 1/5th, 1/6th & 1/7th scale vehicles.

Includes:

• (1) Ezrun MAX6 ESC
• (1) Ezrun MAX Motor ( Ezrun MAX 4985SL Motor)
• (1)  8 AWG 200C RED power wire
• (1) 10 AWG 200C Black power wire
• (1) Double side tape
• (2) Heat shrink tube
• User’s manual
• A HOBBYWING decal

Motor Specs:

Ezrun Motor: 4985 SL-1650KV
PN: 30402950
Pole: 4
KV(No-load): 1650KV
R. (Ω): 0.0053
Current No-load（A): 5.4
Max. Output Power（W): 5700
C.at the point of M.O.P *(A): 160
Motor D.&L (mm): Φ=49mm, L=86.5mm
Shaft D.&L of the projecting part(mm): Φ=5.0mm, L=21.5mm
LiPo(S): 3-6
W (g): 587g (20.71oz)
Applicable: 1/6th & 1/7th RC Vehicles

ESC Specs:

EZRUN ESC: MAX6
P/N: 30105000
Scale Vehicles: 1/6th, 1/7th
Cont./Peak Current: 160A/1050A
Motor Mode: Sensorless
Input: 9-24 Cells NiMH, 3-8S Lipo
Motor Limit 6S:KV≤1500 8S:KV≤1200 (Motor Size:5892)
BEC Output: 6V/7.2V adjustable, 6A
Programming Port: Same
ESC Programming: Same
Switch Mode: Same
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H) mm: 70.0/56.0/46.5
Weight: 240g
