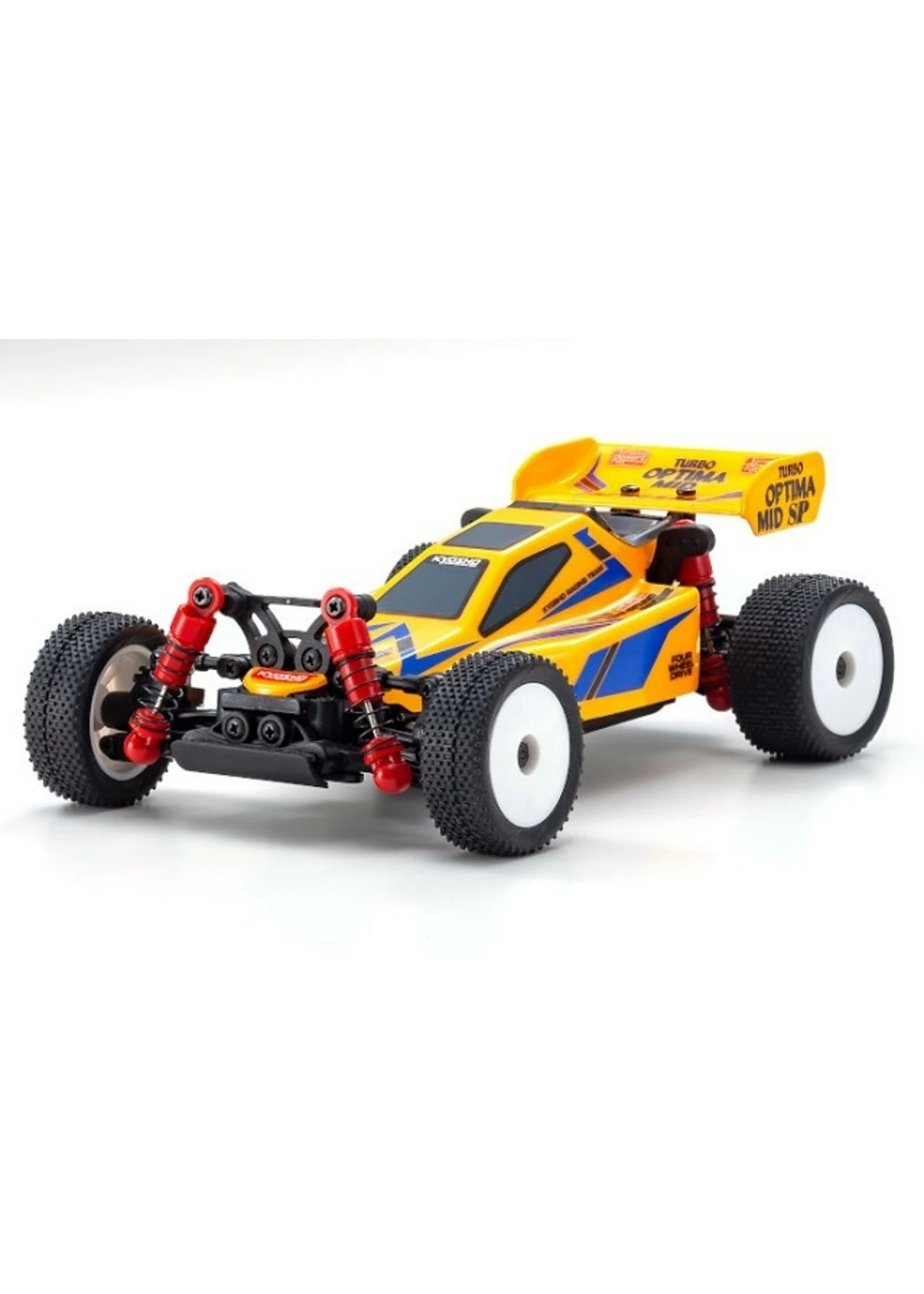

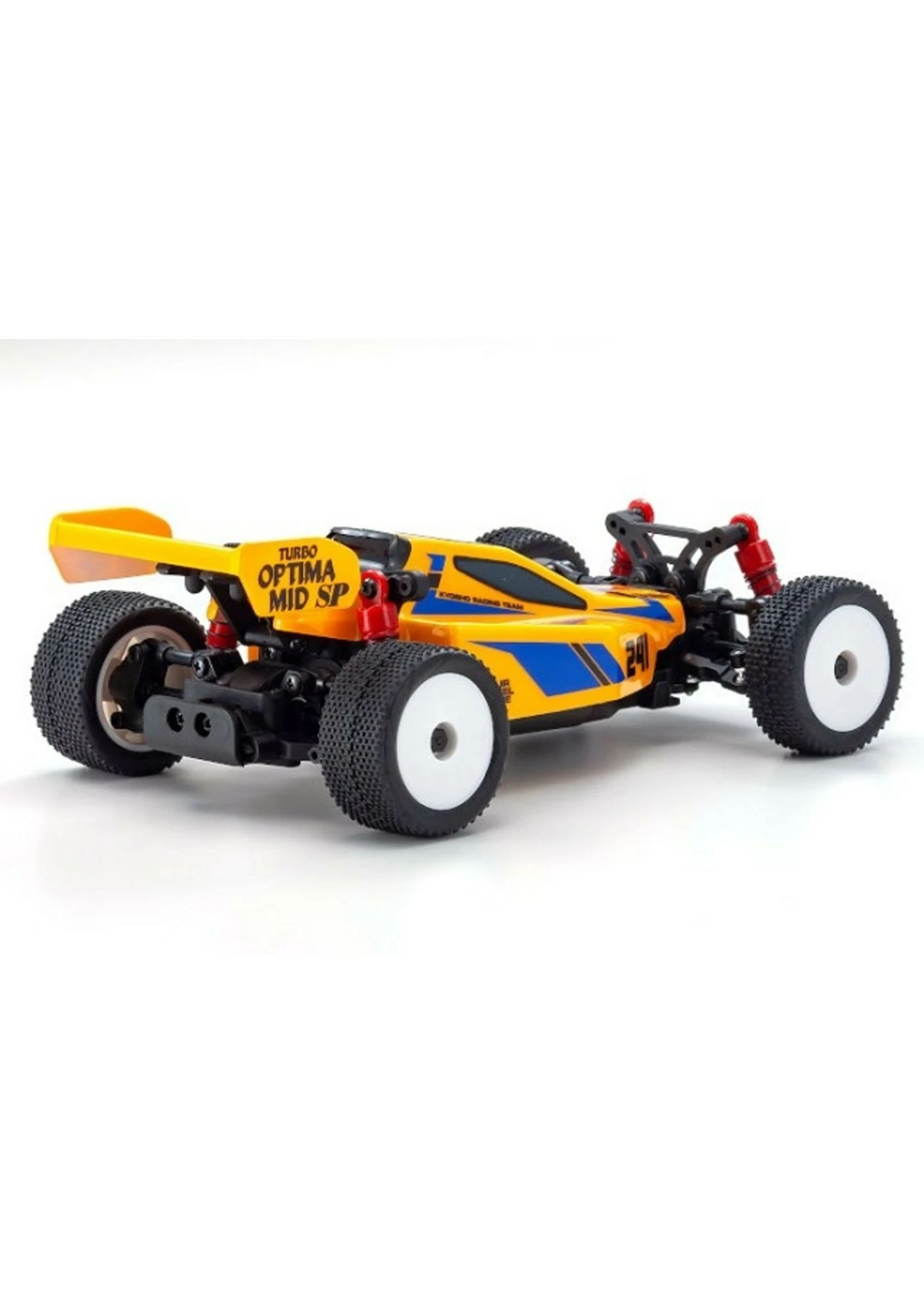

Kyosho 32092Y – MINI-Z Turbo Optima Mid Yellow – Readyset

Kyosho 32092Y – MINI-Z Turbo Optima Mid Yellow – Readyset

Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to deliver the MINI-Z’s signature linear handling and light feel. The circuit board also features manual volume adjustment for the optional gyro unit (sold separately) that stabilizes straight line running and improves cornering control. Modeled on the popular Inferno MP9, the MINI-Z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.

**As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.**

Features:

• Readyset package allows model to be enjoyed straight after purchasing batteries.
• Fully pre-assembled chassis with printed polycarbonate body.
• Real racing performance will please buggy owners. Great for indoor practice.
• Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
• FHSS 2.4GHz R/C system removes the need to manage frequency bands.
• Frequency crystals are not required and up to 40 cars can be run at the same time.
• Optional gyro unit set (MZW431) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
• Most optional parts already released for MINI-Z Buggy can be installed.

Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.

Main parts including sealed diff gearbox are contained within the dust resistant structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.

Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.

Includes connector for optional gyro unit (MZW431) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.

4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.

Chassis features shell structure with battery boxes on each side for low CG and balanced handling. High rigidity extracts full effectiveness from the suspension.

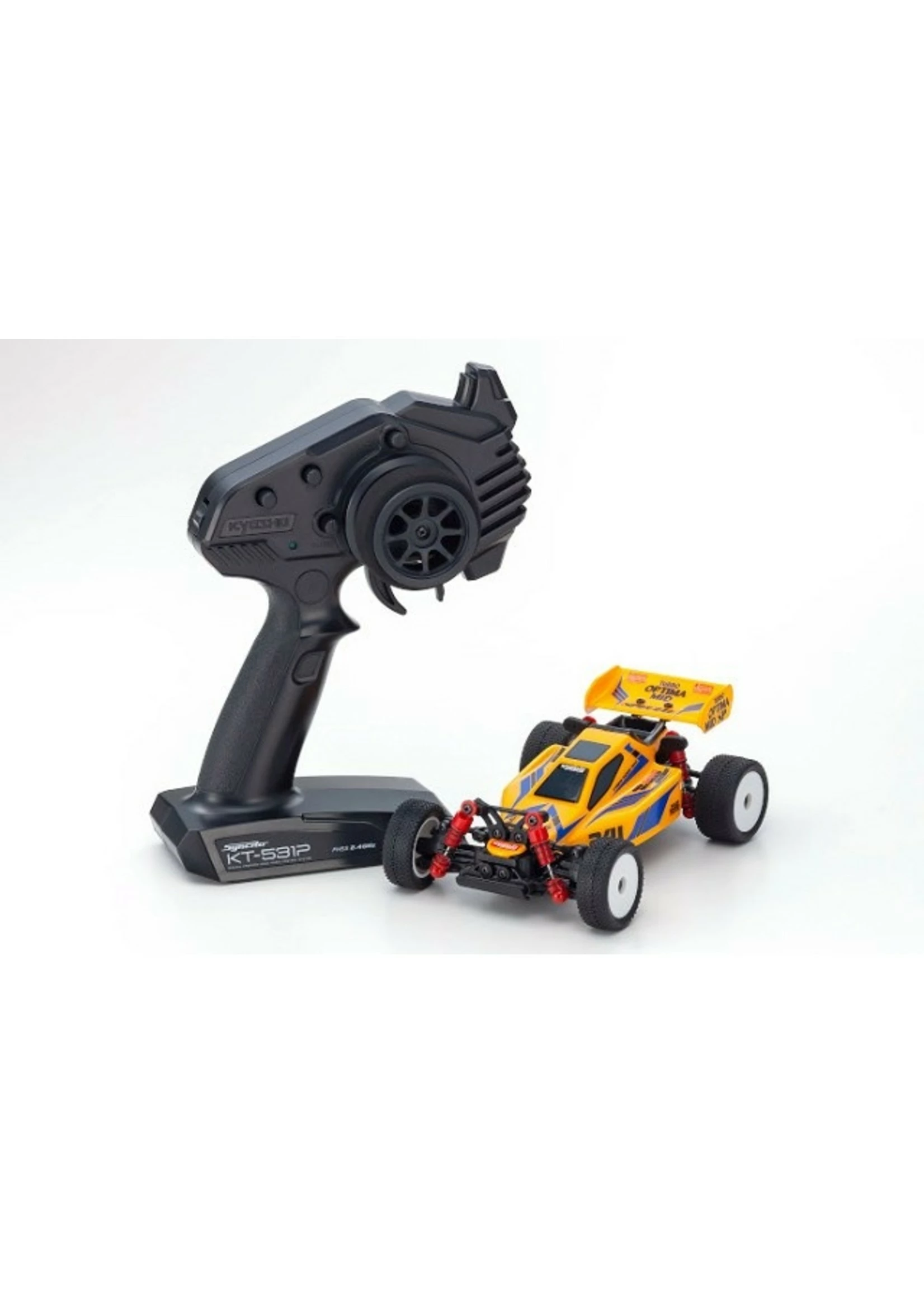

Includes:

• Factory assembled chassis with pre-installed R/C unit
• KT-531P transmitter
• Pre-painted polycarbonate body finished with markings
• Pinion gears (11T, 13T, 15T)
• Spur gears (33T, 35T)
• Pinion gear tool
• Pairing stick
• Wheel wrench
• Spare nuts for wheels

Required to Complete:

• AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
• AAA alkaline batteries x 4 for KT-531P transmitter

Specs:

Length: 167mm
Width: 106mm
Height: 56mm
Wheelbase: 115mm
Tread (F/R): 89mm/89mm
Tire(F/R): F37 x 13.5mm/F37 x 18.5mm
Weight: 200g (approx.)
Motor: 130 class
Battery: AAA alkaline x 4
R/C System: KT-531P FHSS 2.4 GHz
