RC4WD – 540 Crawler Motor – Brushed (55T)

RC4WD – 540 Crawler Motor – Brushed (55T)



Specifications:

• Custom made 540 Steel case
• Chrome plated case
• Build in capacitor for minimizing glith
• High torque magnet and rotor
• Small footprint (50mm long)
• Tuned for Rock Climbing and Scale Driving
• Polished Bushings

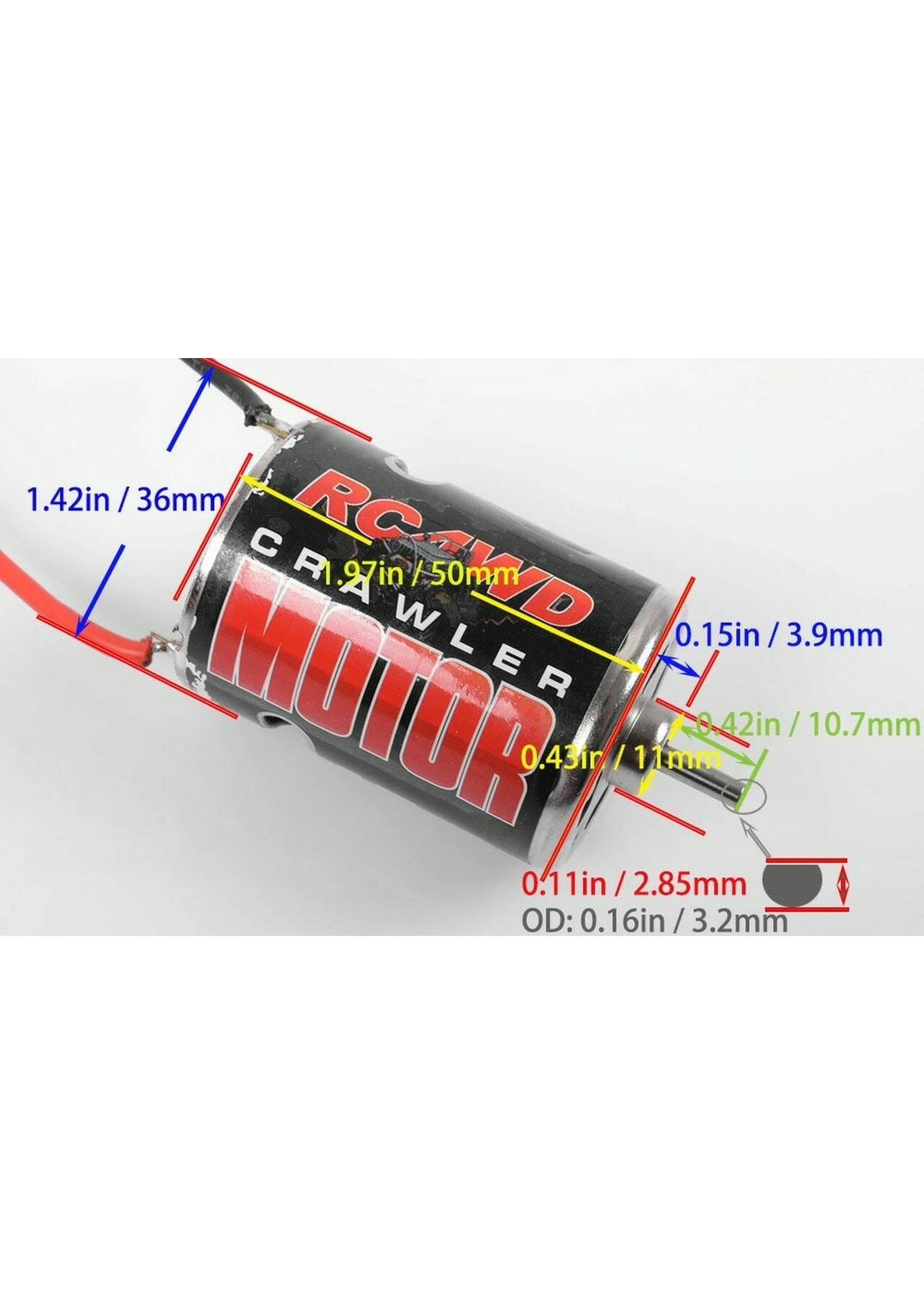

• Body OD: 1.39in / 35.5mm
• Output Shaft Length: 0.43in / 11mm
• Output Shaft: 0.12in / 3.1mm
• Min and Max Voltage Range: 2.4V-30V



Performance Specs:

• (At no load) RPM @ 7.2V : 8000 (?10%), .75Amp Current
• (Max Efficiency) RPM @ 7.2V : 6800 (?10%), 3.35Amp Current
• Designed oprating temperature range: -30?C to +80?C
• Motor end play : .50mm max
• Noise level: < 60db
