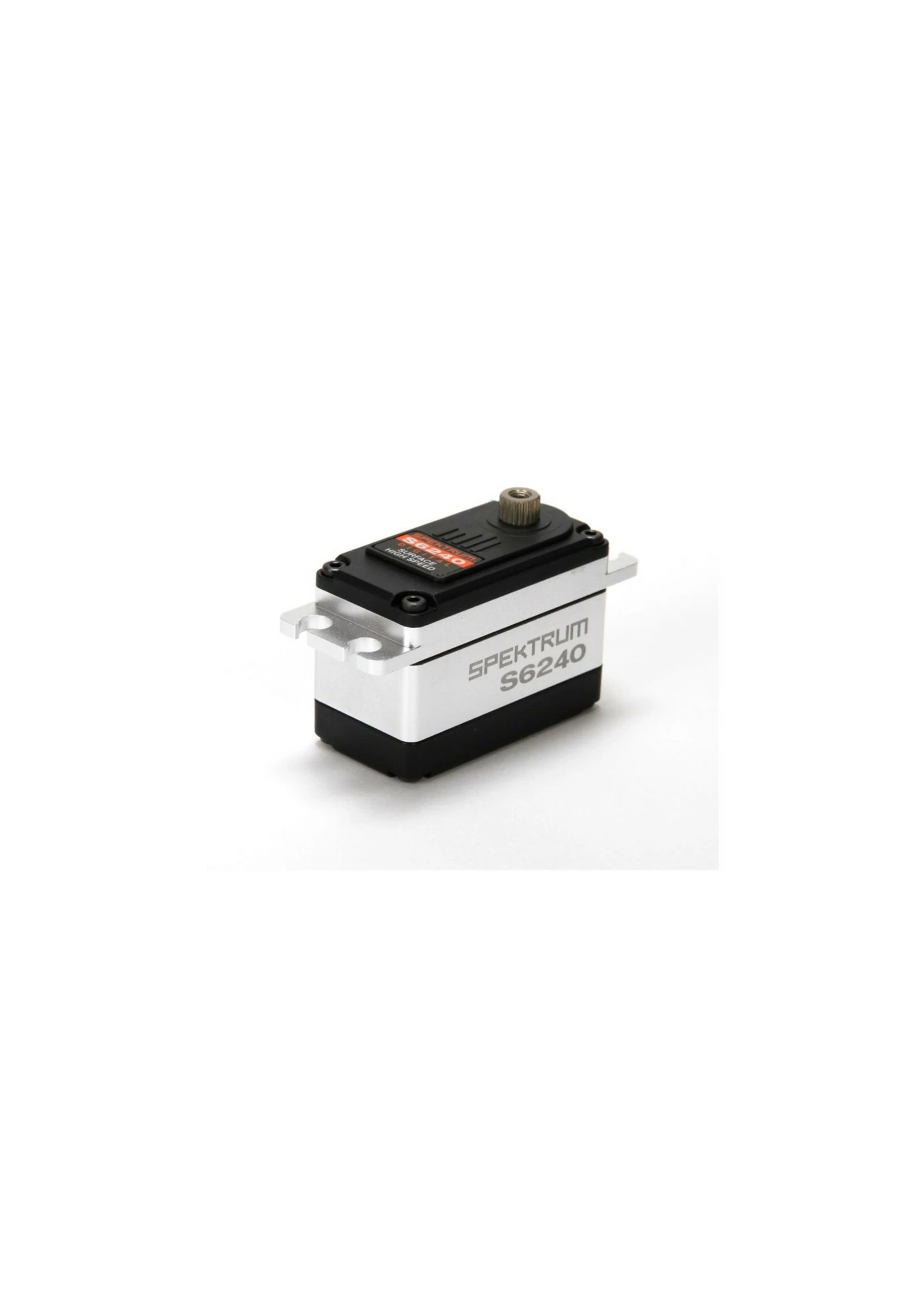

Spektrum S6240 – High Speed, Digital Servo
Original price was: $89.99.$62.99Current price is: $62.99.
- Quality Products, Quality Service
- Best price, safe shopping guarantee
- Peace of Mind with Every Purchase
- Have the best deals
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6240 offers high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited.
Features
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Specs:
Application: 1/10 Buggy, Truck, On-Road
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Z-Connector
Connector Wire Gauge: 22 AWG
Connector Wire Length: 7.87 in (200mm)
Current Draw Idle: 9.8 mA @ 6.0V
Current Draw Stall: 4.9A @ 6.0V
Deadband: 4µs
Gear Material: Aluminum, Steel
Gear Type: Metal
Height: 1.18 in (30mm)
Length: 1.61 in (41mm)
Motor Type: Coreless
Programmable: No
Rotation Range: 120°
Servo Operating Voltage: 6.0V
Servo Type: Digital
Speed: 0.08 sec/60 deg @ 6.0V
Spline Count: 23 Teeth
Torque: 208 oz-in (15.0kg-cm) @ 6.0V
Type: S6240 High Speed, Digital
Weight: 2.1 oz (59.5g)
Width: 0.82 in (20.9mm)
