Spektrum SPMR6775 – NX6 6 Channel Transmitter Only

The NX6 2.4GHz DSMX® radio marks an evolution in Spektrum™ air transmitters for new to intermediate-level pilots. It’s the first 6-channel radio in the Spektrum lineup to be equipped out-of-the-box with Smart Technology compatibility. The NX6 therefore comes ready to provide the advantages of state-of-the-art connectivity and telemetry — just pair it with Spektrum Smart batteries and Smart Avian™ ESCs.

The NX6 radio’s Wi-Fi connectivity adds more convenience. In addition to completing product registration straight from the transmitter, you’ll be able to download firmware updates instantly. It’s a totally modern user experience with some of the same features found on the top-of-the-line Spektrum iX Series radios.

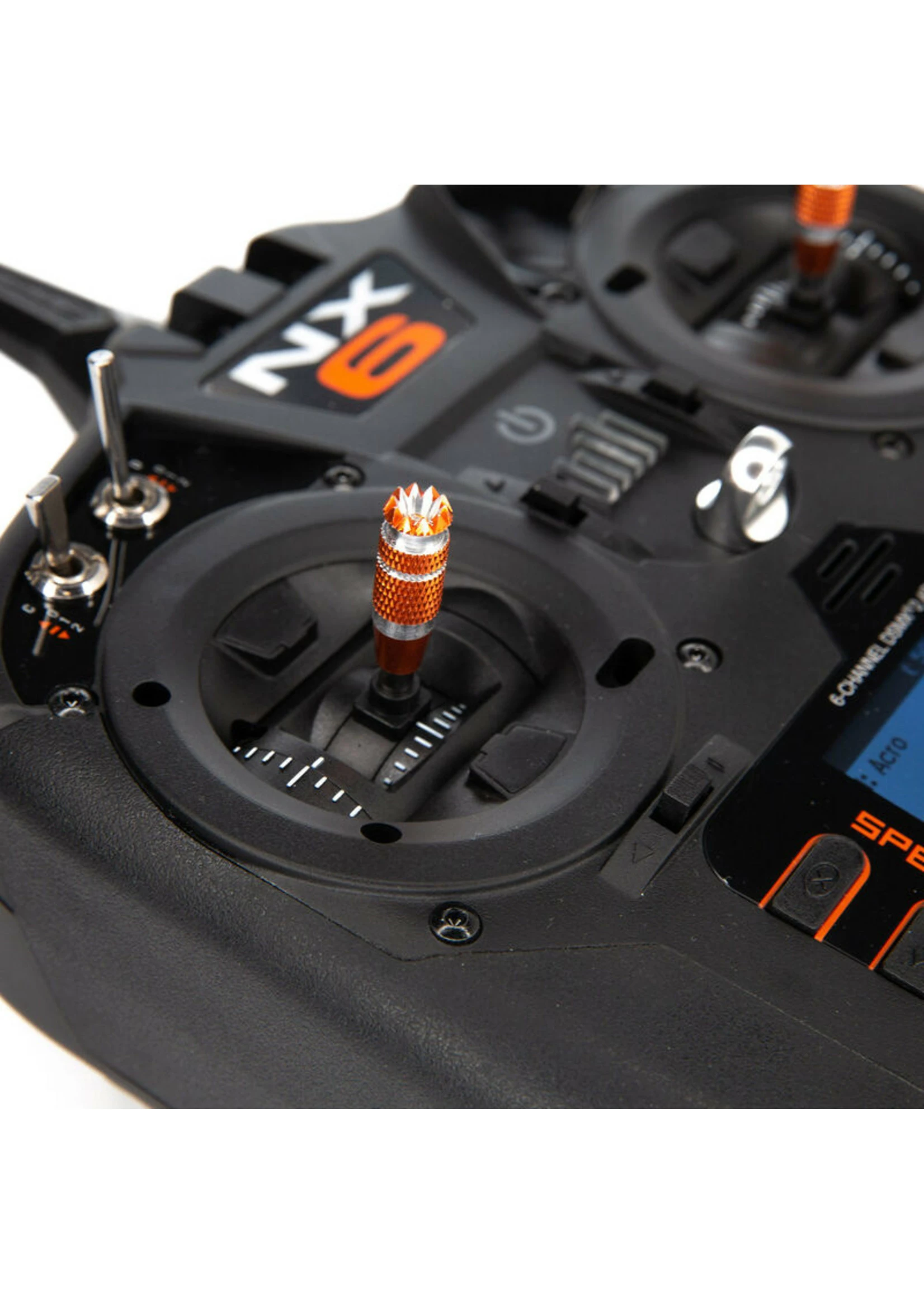

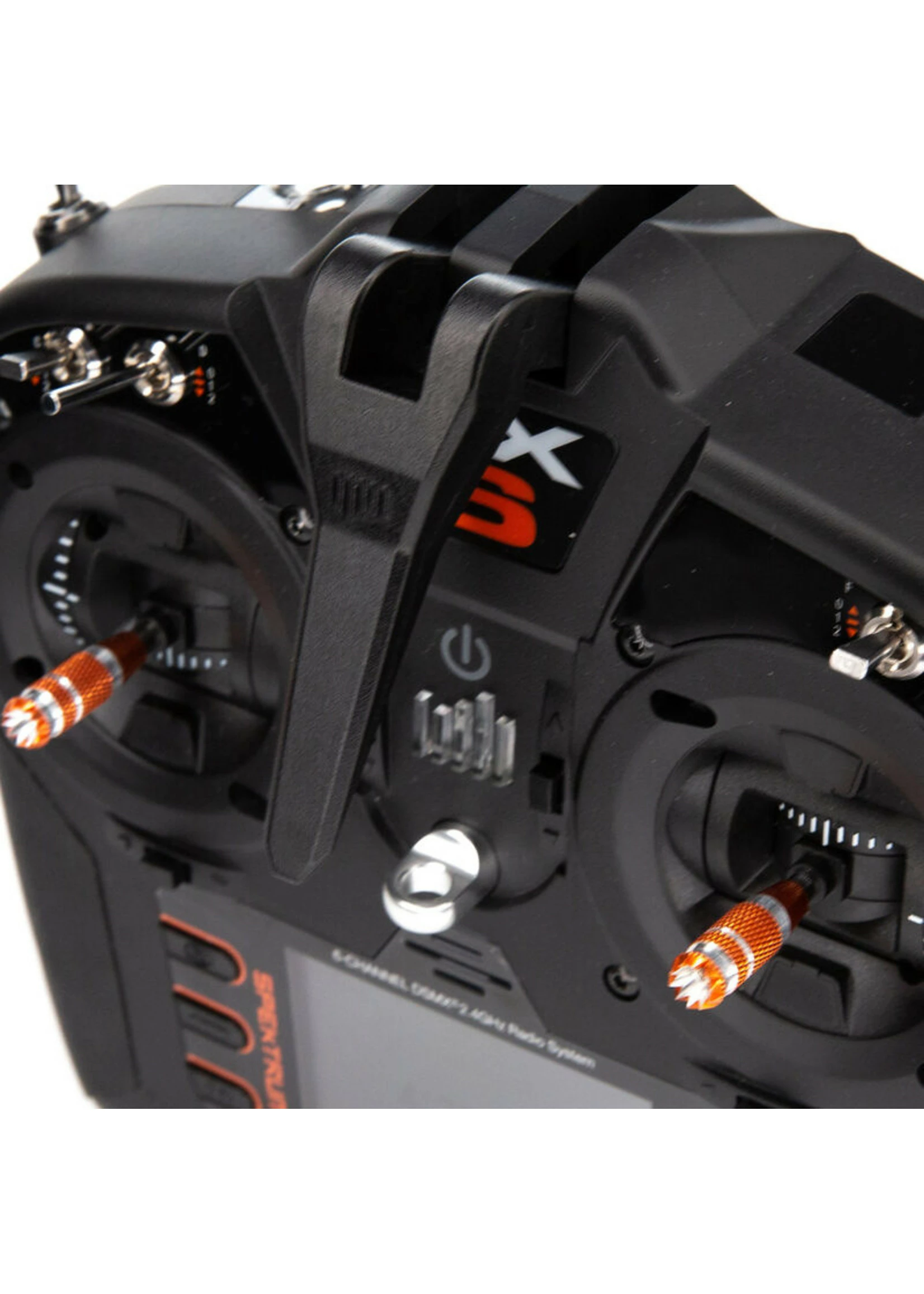

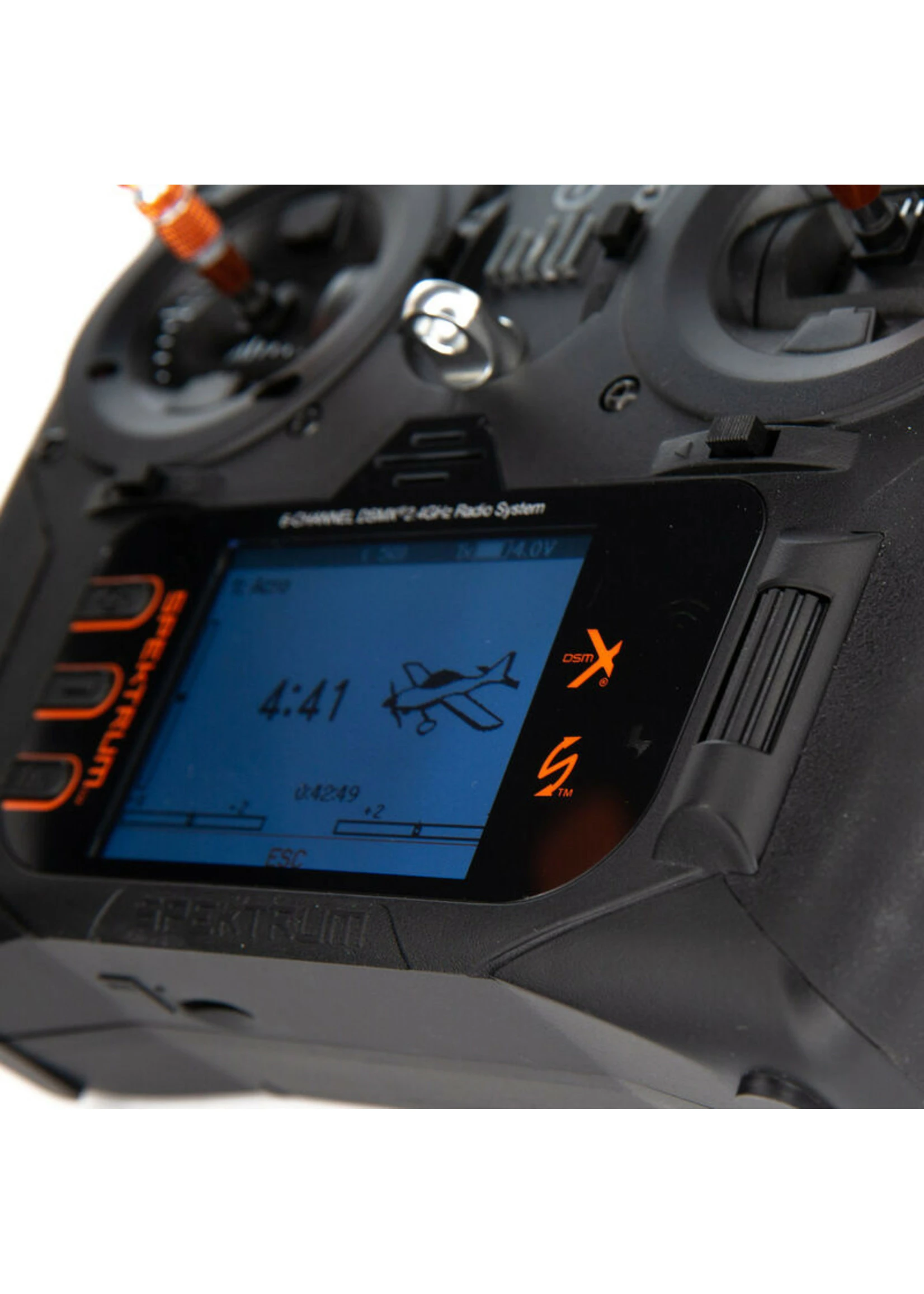

Proven Spektrum radio expertise is also evident in the NX6 transmitter’s ergonomic design. Its contours, balance, and control positions combine to add precision to your inputs and offer unparalleled comfort. An easy-to-use roller wheel interface simplifies programming, with a large 3.2″, high-resolution color display to make menus easy to read. Spektrum even includes a rechargeable 1S 2000mAh Li-Ion transmitter battery.

The NX6 is the Smart choice in a 6-channel air radio, delivering unexpected power and the innovative connectivity available only from Smart Technology. It’s available as a transmitter only or packaged with the Spektrum AR6610T 6-channel DSMX®/DSM2® receiver — which is compatible with Spektrum Avian™ Smart ESCs for experiencing the full benefits of flying “Smart”.

Features:

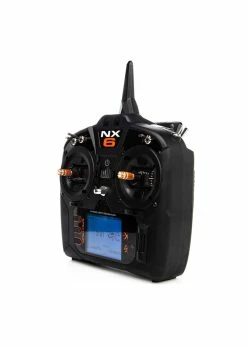

• High-resolution, backlit, 3.2″ color display screen
• Wi-Fi connectivity for easy product registration, model downloads and firmware updates
• Smart Technology compatibility out of the box
• 3.7V 2000 mAh 1S Lithium Ion transmitter battery included

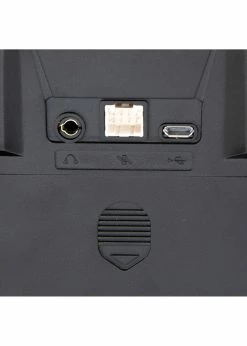

• Integrated serial port for supporting 3rd party modules
  • *Serial port does not provide power, external power source is required
• USB port for charging and data transfer, and for use with any simulator that supports USB game controllers (including the RealFlight® RC Flight Simulator)

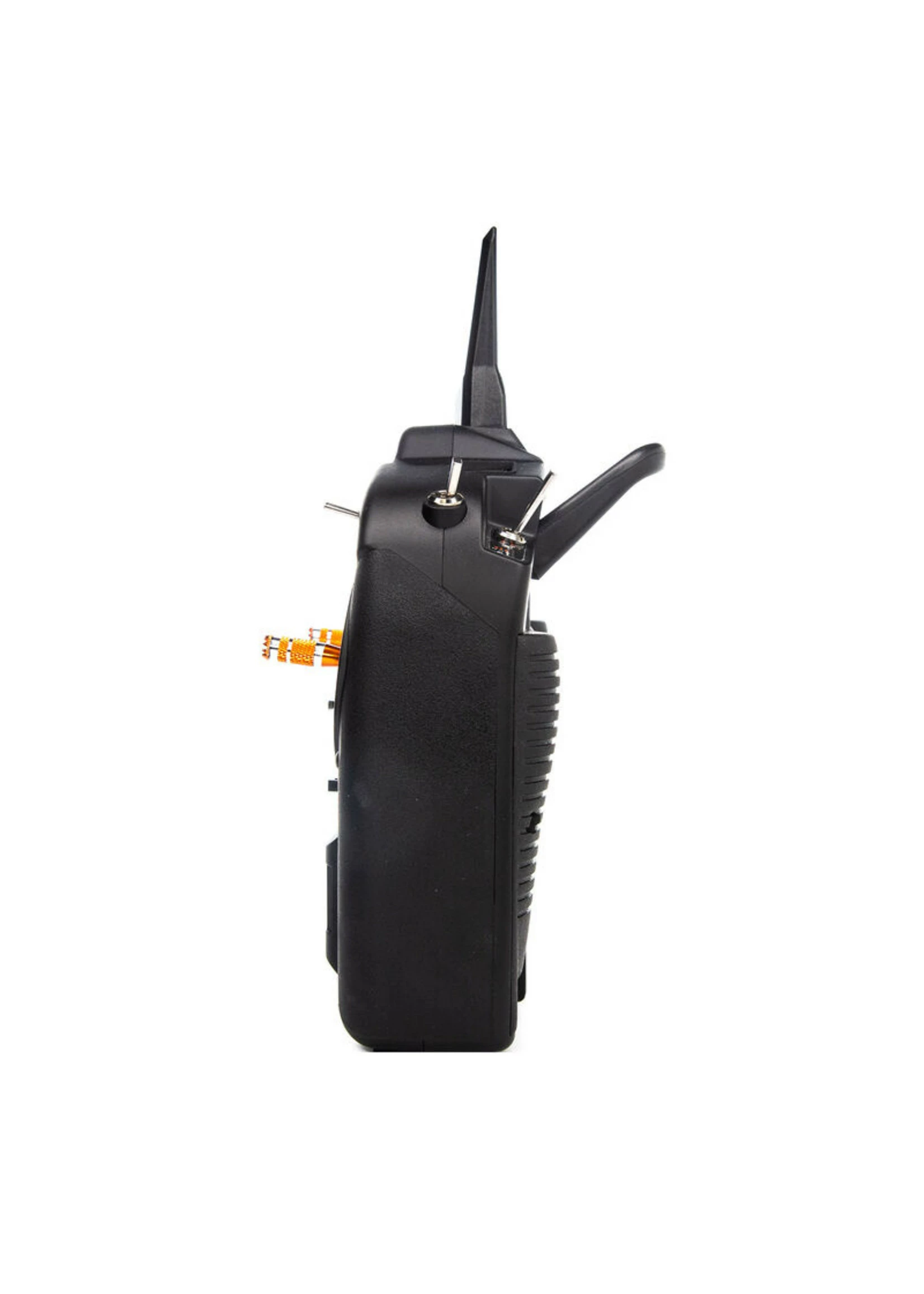

• Folding antenna
• Diversity antenna



In The Box:

• 1 – Spektrum™ NX6 6-channel DSMX® Transmitter
• 1 – 3.7V 2000 mAh 1S Lithium Ion Transmitter Battery
• 1 – Micro USB cable
• 1 – Product Manual



Needed to Complete:

• Compatible Spektrum™ receiver



Specifications:

• Application – Airplane/Helicopter/Sailplane/Multirotor
• Band – 2.4GHz
• Battery – Included
• Channels – 6
• Charger – Included
• Data Port – Yes
• Failsafe – Yes
• Flight Log Compatible – Yes
• Frame Rate – 11/22 Ms
• Input Voltage – 3.7V
• Model Memory – 250
• Modes – User Selectable Mode 1-4
• Modulation – DSMX
• Programmable – Yes
• Range – Full
• Rate Positions – 3 POS
• Receiver – Sold Separately
• Resolution – 2048
• SD Card/Airware Capable – Yes
• Technology – Smart
• Telemetry – Yes
• Transmitter (Tx) Battery Type – 1S Lithium Ion 2000mAh
