Tamiya 58692 – 1/10 Mercedes-Benz Unimog 406 – CC-02S Chassis Kit
The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description “Universal-Motor-GerΓ€t.” The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.
CC-02 Chassis – Off Road, Evolved

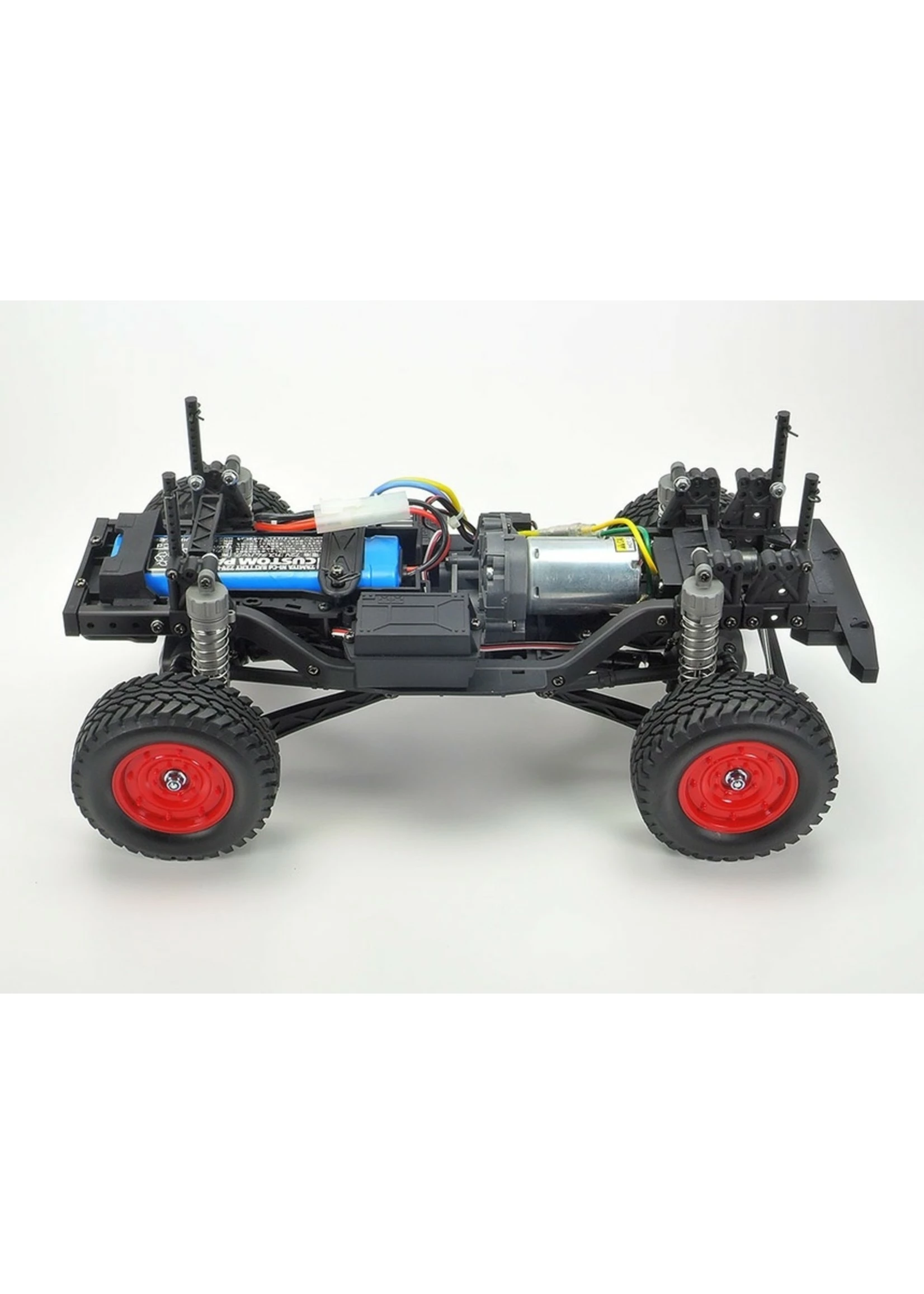

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.
Features:
- 1/10 R/C model assembly kit. Length: 384mm, width: 196mm, height: 224mm. Wheelbase: 242mm.

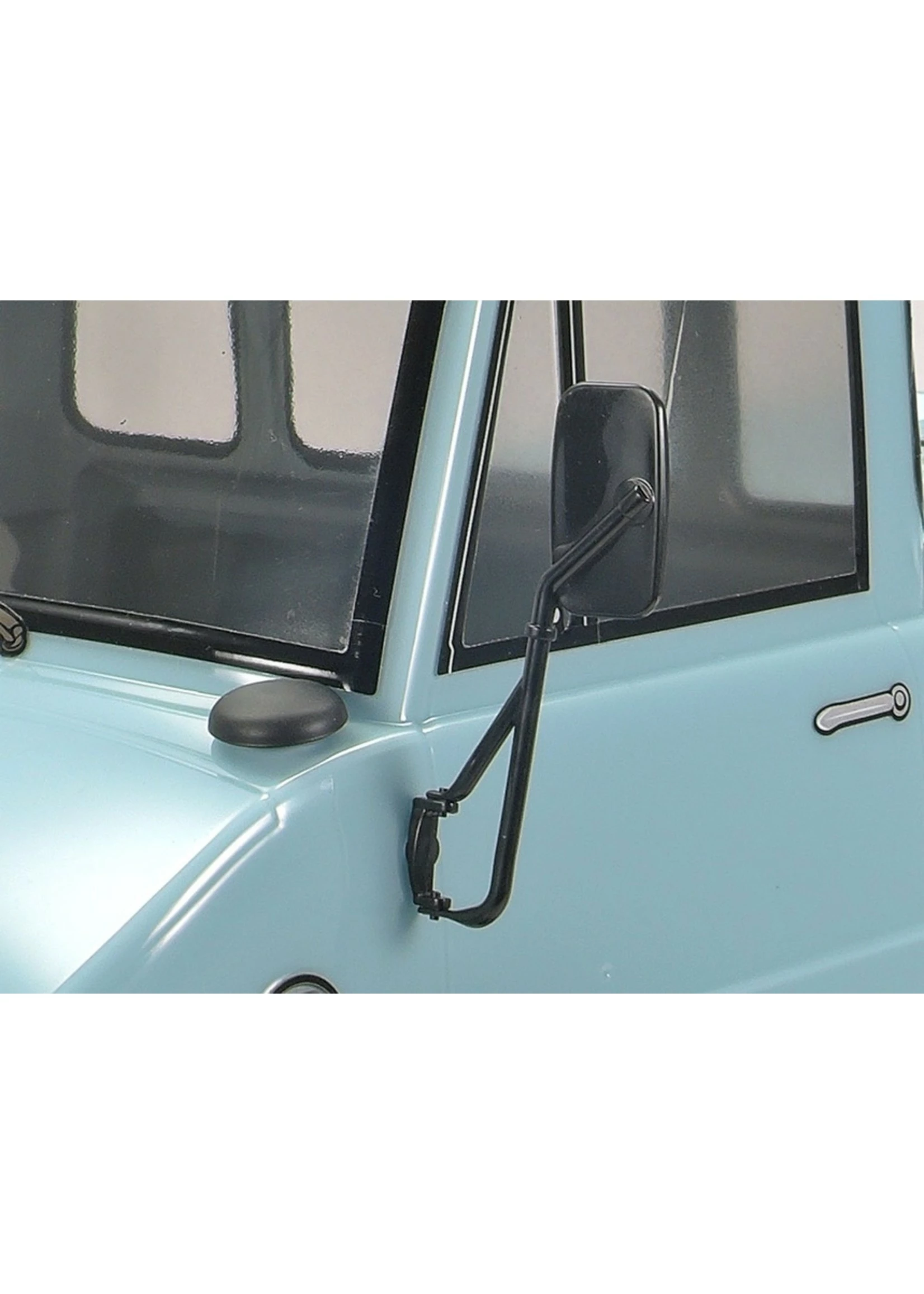

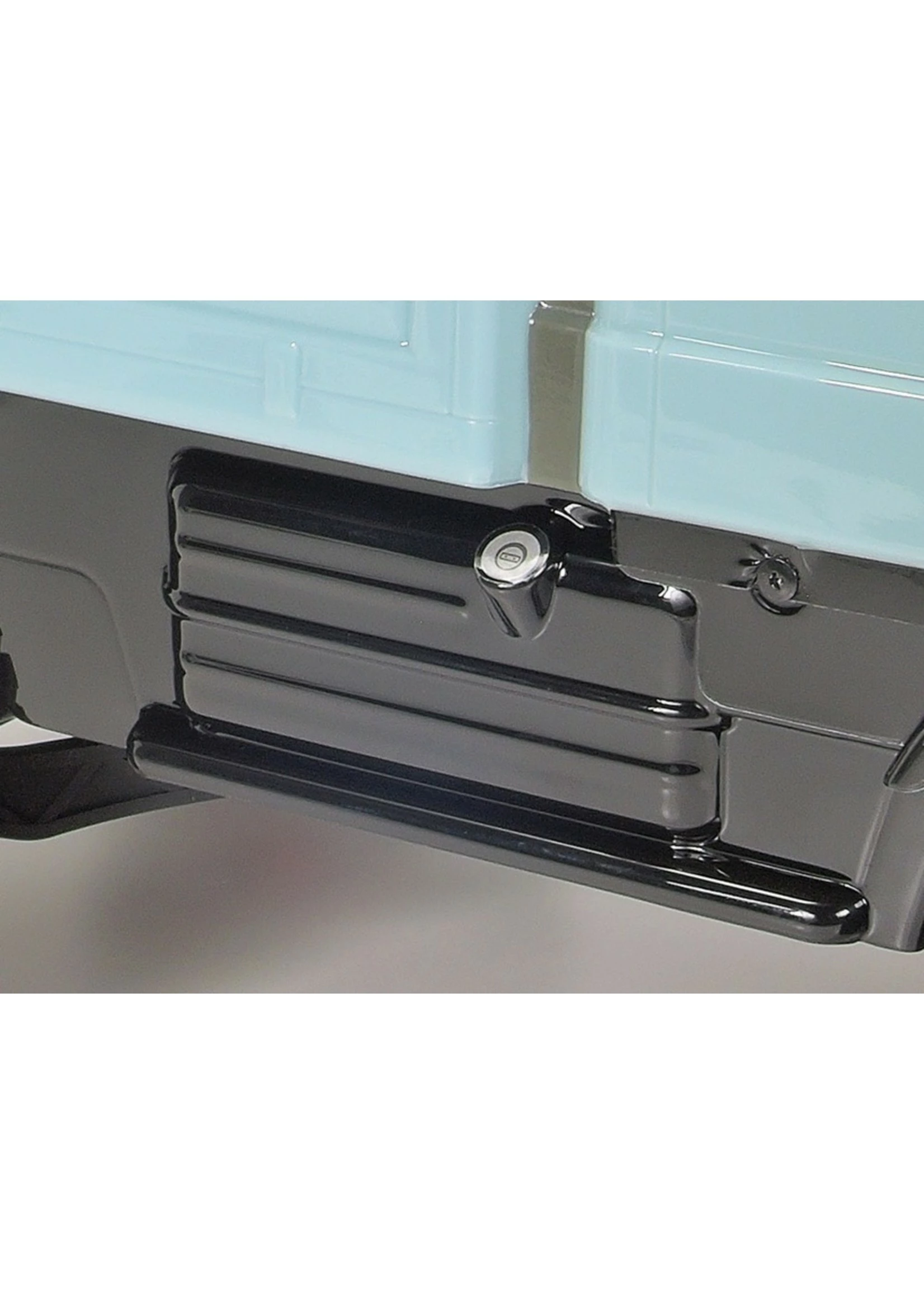

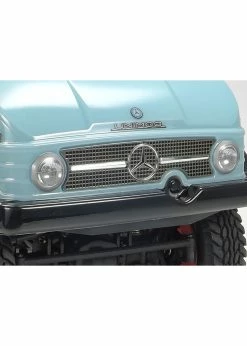

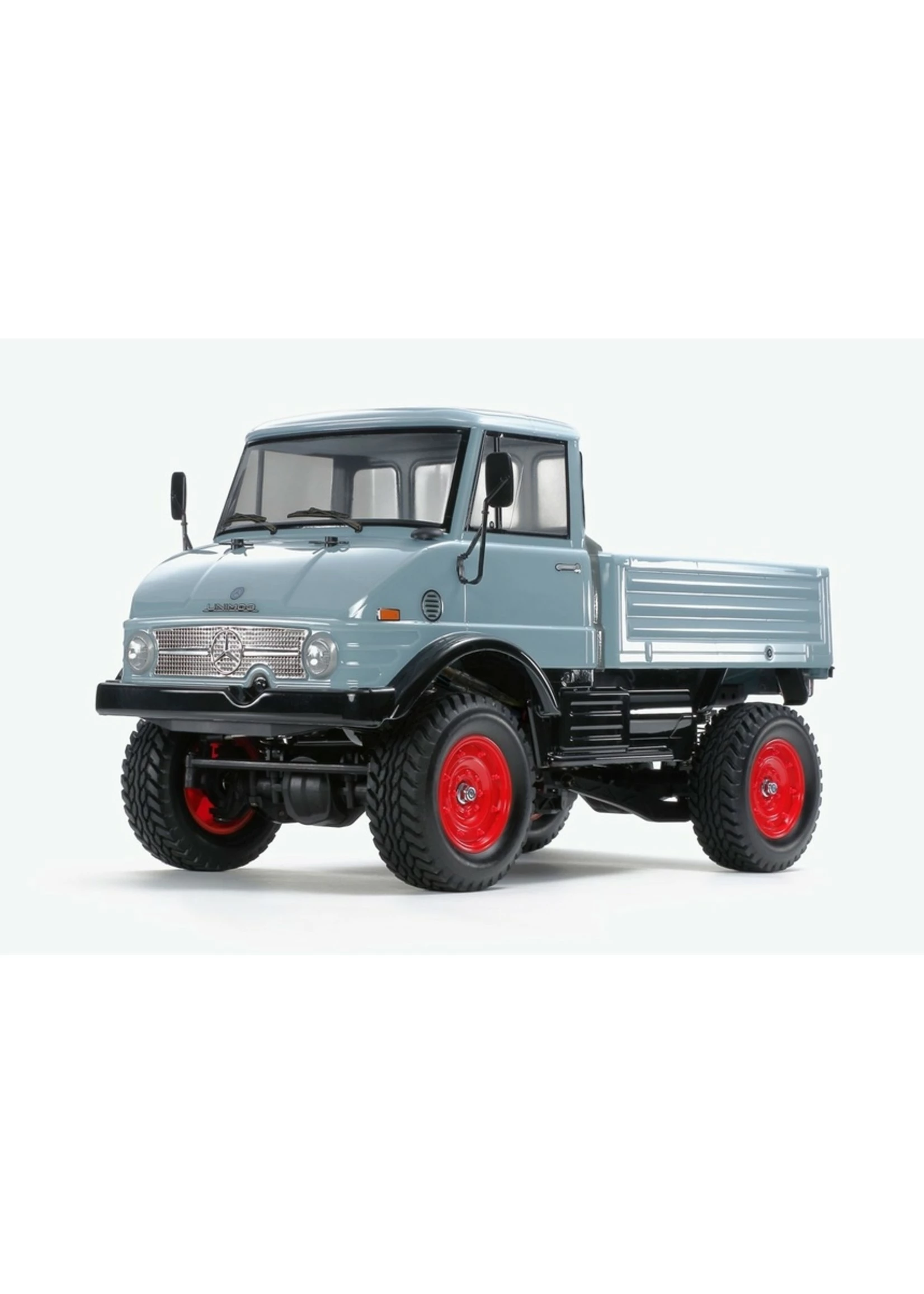

- Polycarbonate body with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem.
- Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs.
- Propeller shafts (short: 76mm) included.
- The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability.
- A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear.

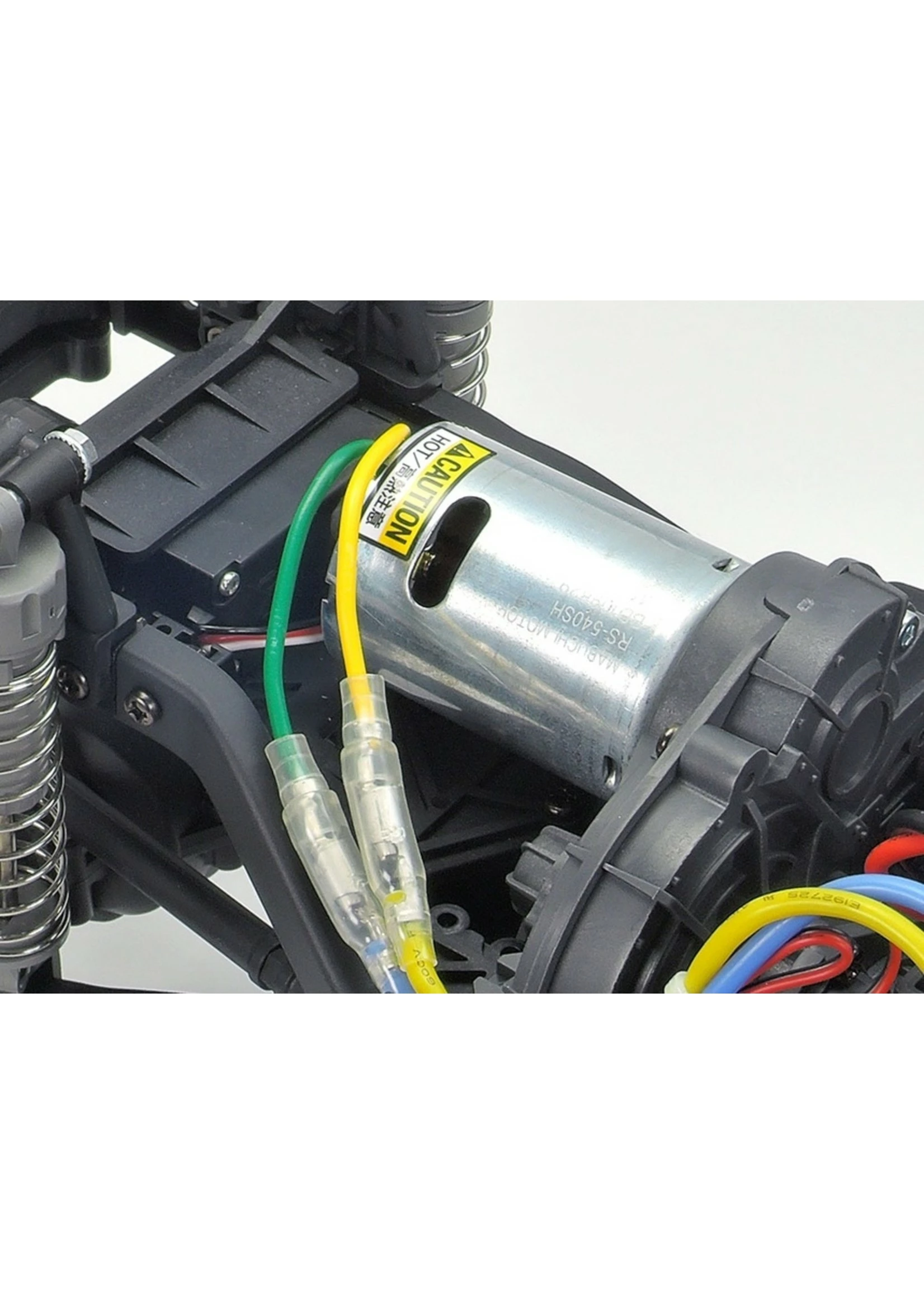

- Includes 540-brushed type motor.
- Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
- Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint.
Specs:
Adjustable Gear Ratio: Yes
Bearings: Plastic bushings & Metal bearings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: CC02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
Motor: 540-brushed type
Requires: A 2-channel radio, steering servo, ESC, 7.2-7.4 volt battery & battery charger, and Tamiya PS (polycarbonate spray paint)
Scale: 1/10
Shock Damper: CVA Oil Filled

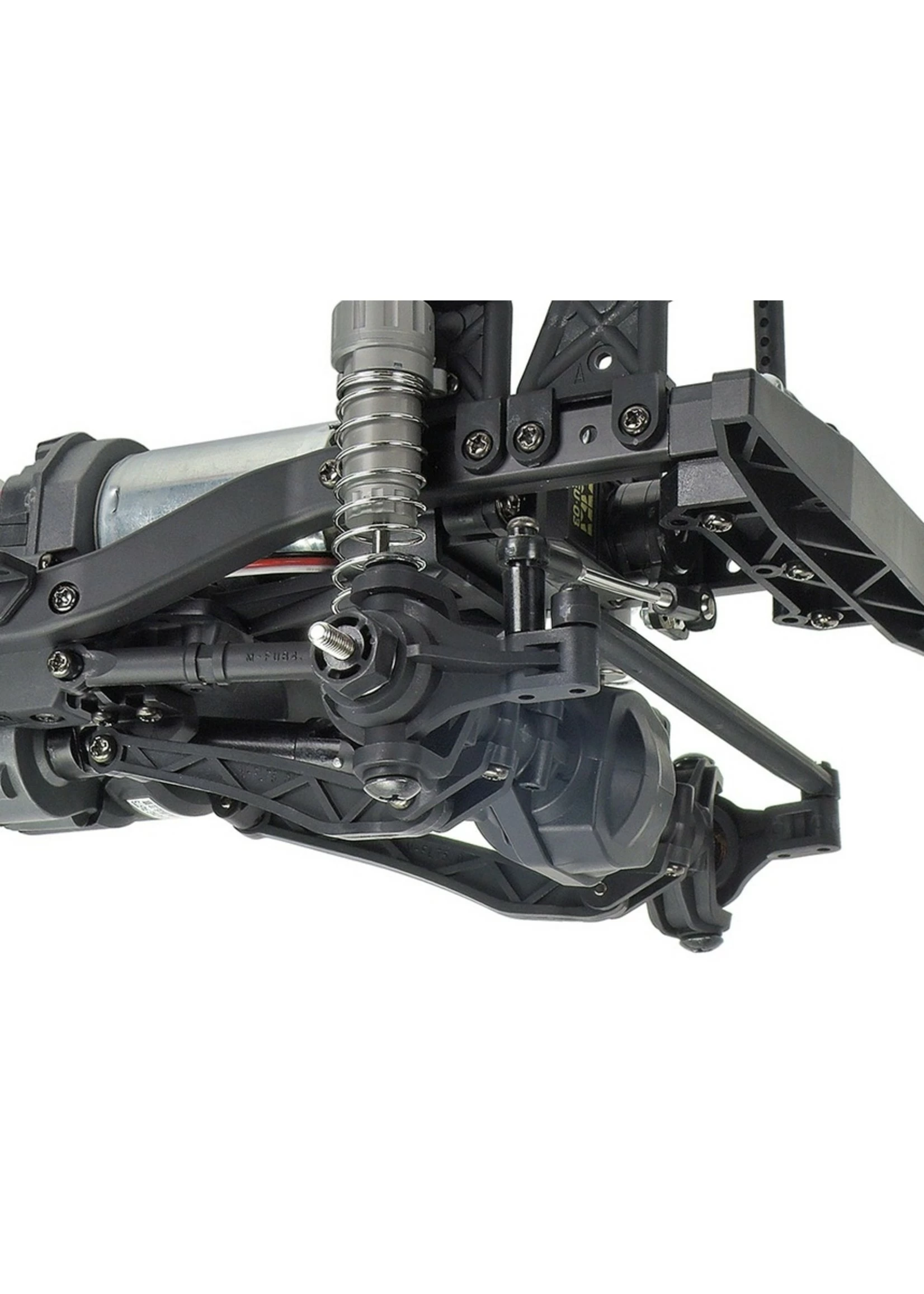

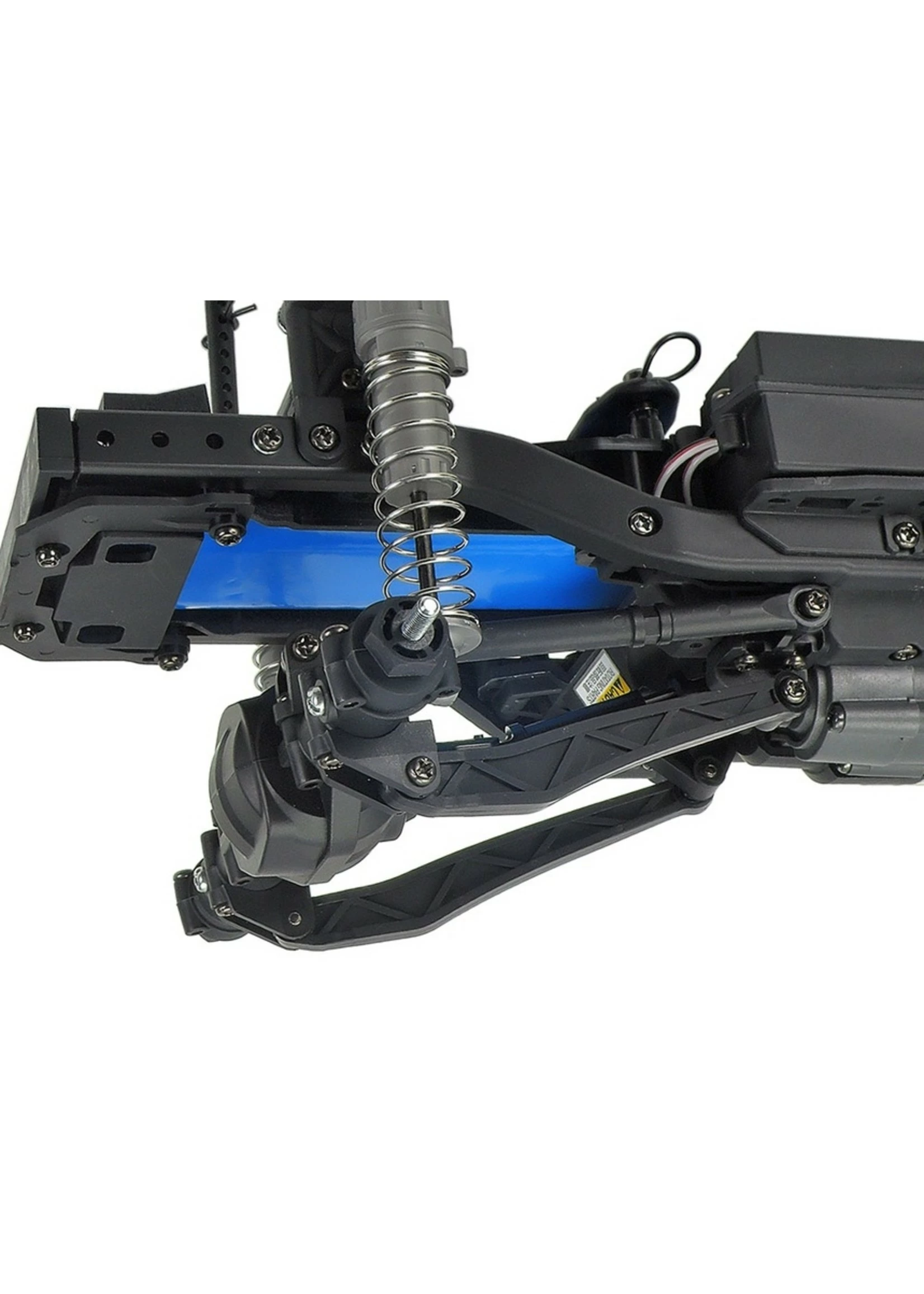

Suspension: 4-Link Rigid Suspension (Front & Rear)
Terrain Use: Multi-Purpose
