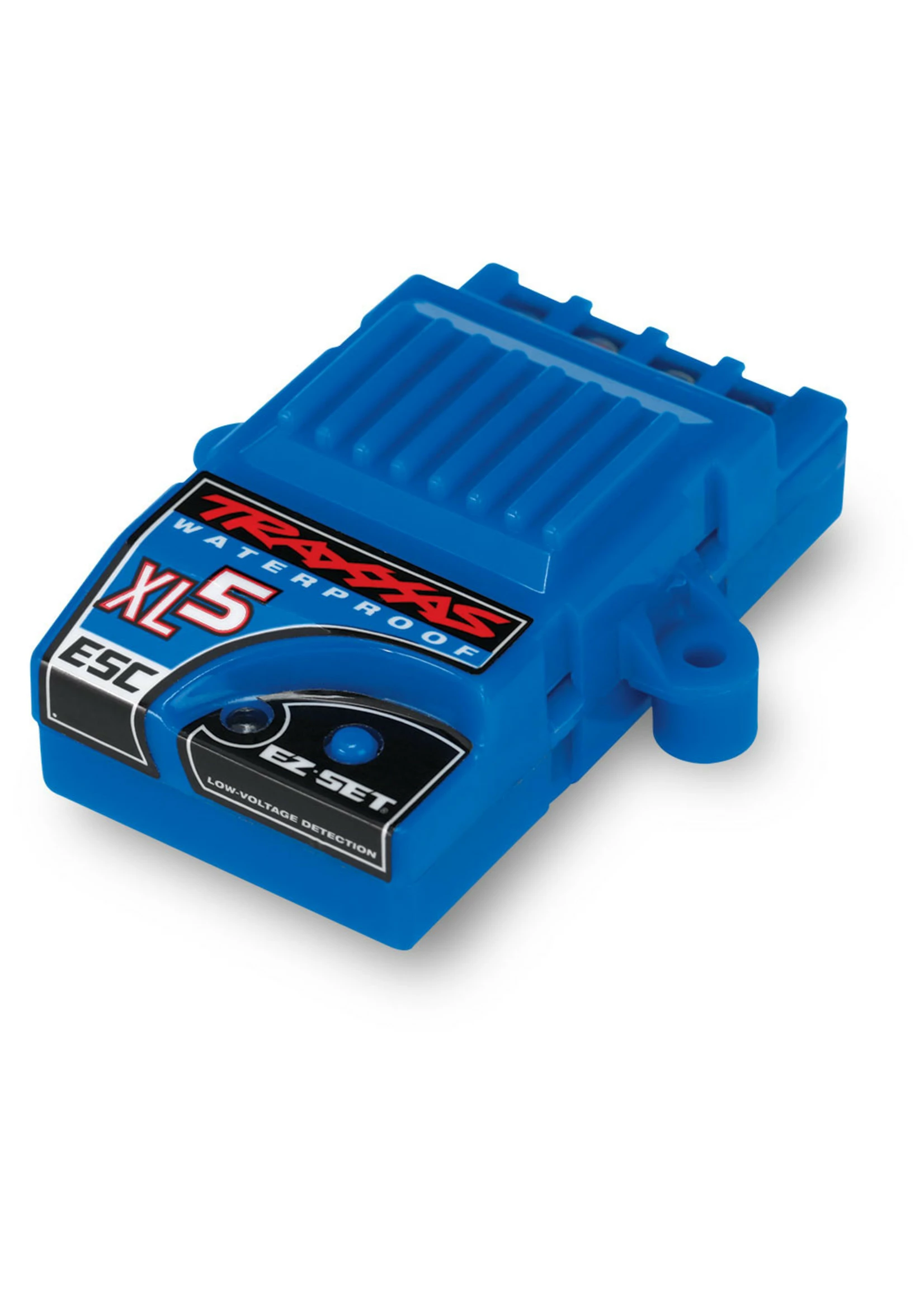

Traxxas 3018R – XL-5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector

The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Patented Training Mode™

An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they’re ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

Features:

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative watersealed design
• 15-turn motor limit for 540 size motors
• 12-turn motor limit for 550 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set^® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Specs:

Input voltage:	­	4-7 Cells (4.8 to 8.4 Volts DC)
Case Size:	­	1.23″W x 2.18″D x 0.61″ H
Weight:	­	2.44 Ounce
Motor Limit:	­	15-turns** (540 Size) 12-turns** (550 Size)
On Resistance Forward:	­	0.007 Ohms
On Resistance Reverse:	­	0.014 Ohms
BEC Voltage:	­	6.0 VDC
BEC Current:	­	1A
Power Wire:	­	14 Gauge / 5″
Input Harness Wire:	­	26 Gauge / 9″
PWM Frequency:	­	1600 Hz
Low Voltage Detection (LVD):	­	2-Stage indicators, switchable (on or off)
Thermal Protection:	­	Thermal shutdown
Profile selection:	­	Sport Mode:     100% FWD, 100% brakes, 100% REV Race Mode:     100% FWD, 100% brakes, no REV Training Mode:*     50% FWD, 100% brakes, 50% REV
Single-button setup:	­	Yes, Traxxas EZ-Set®
­	­	**Properly geared *Patented



Includes:

Traxxas 3018R: XL-5 Waterproof Electronic Speed Control (Land Version, Low-Voltage Detection, FWD/REV/Brake).
