Traxxas 920564 – TRX-4 Chevrolet K10, High Trail Edition – Red
Original price was: $372.00.$99.99Current price is: $99.99.
- Quality Products, Quality Service
- Best price, safe shopping guarantee
- Peace of Mind with Every Purchase
- Have the best deals

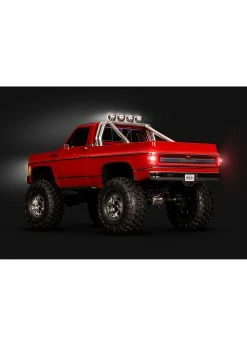

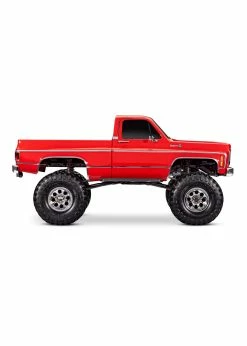

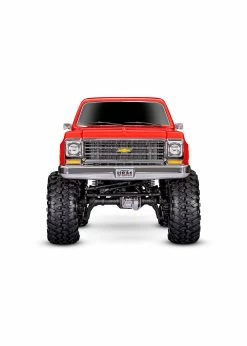

Traxxas 92056-4 – TRX-4 Chevrolet K10, High Trail Edition – Red

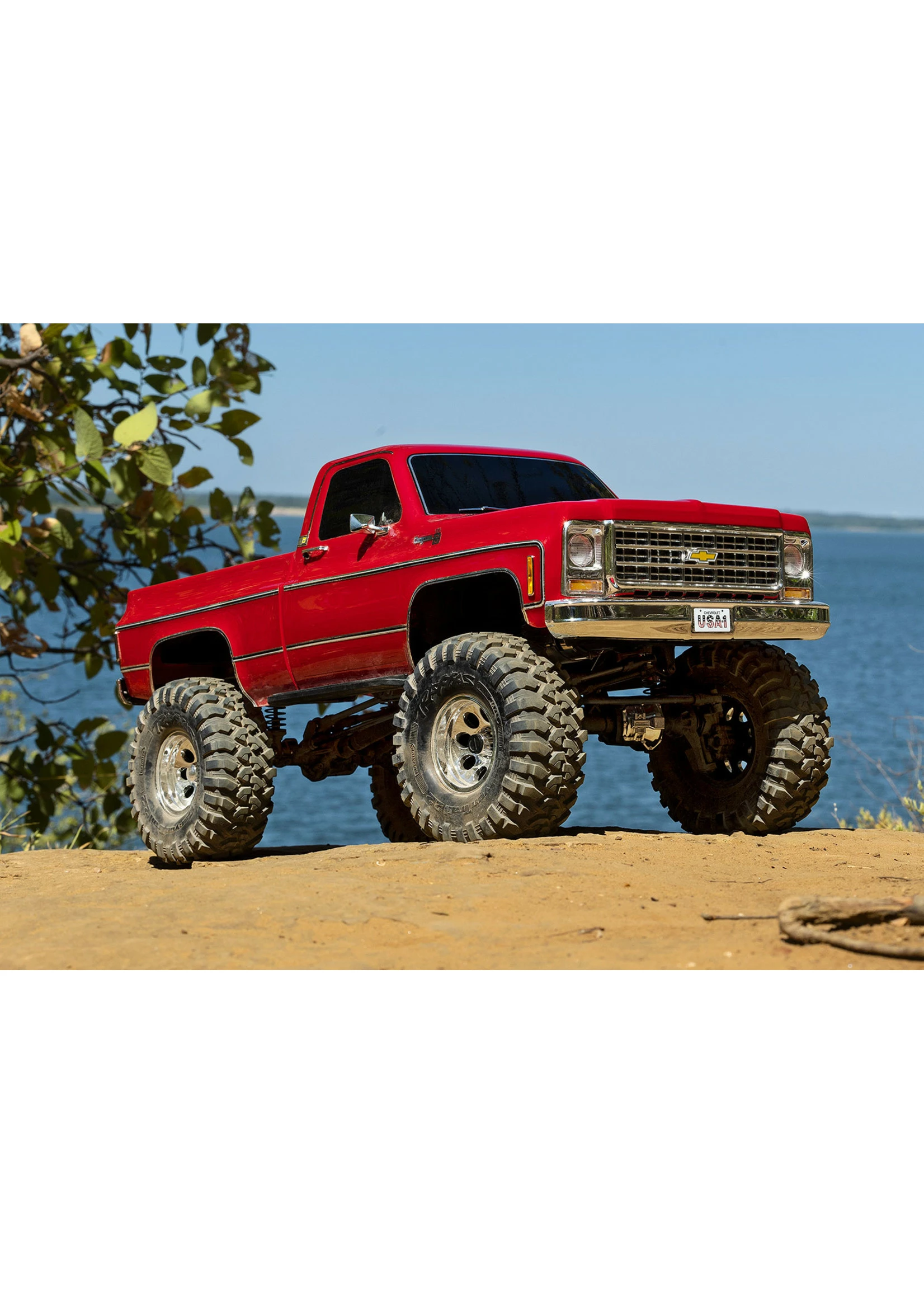

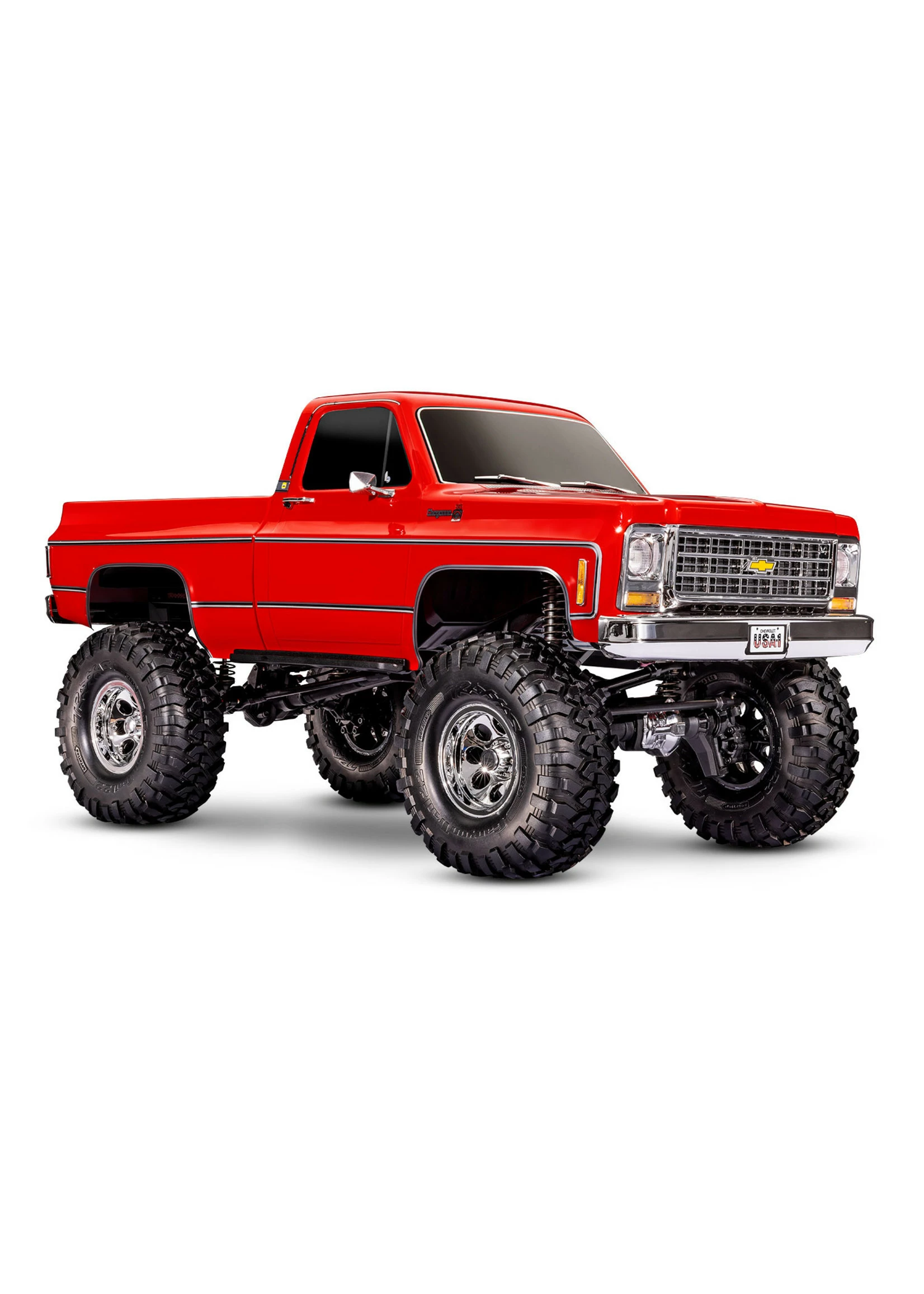

Traxxas elevates scale adventure with the lifted TRX-4Ā® ChevroletĀ® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10ās extended wheelbase further enhances the TRX-4ās already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Toughā¢ durability.
High Trail Edition
The factory-installed Long Arm Lift Kit raises K10 High Trailā¢ Edition over an inch taller for superior ground clearance. Large 2.2ā mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before
Features/Specs:

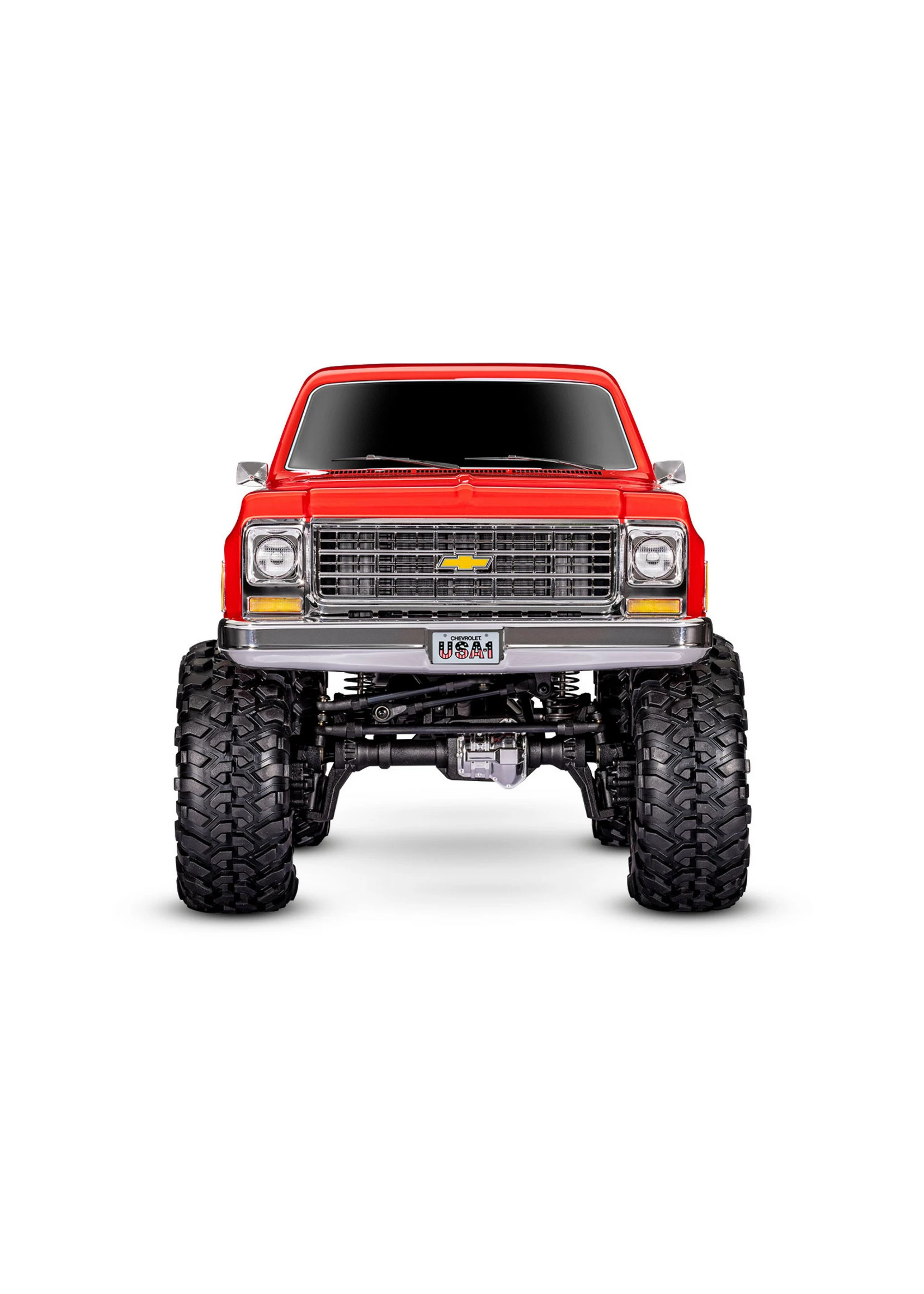

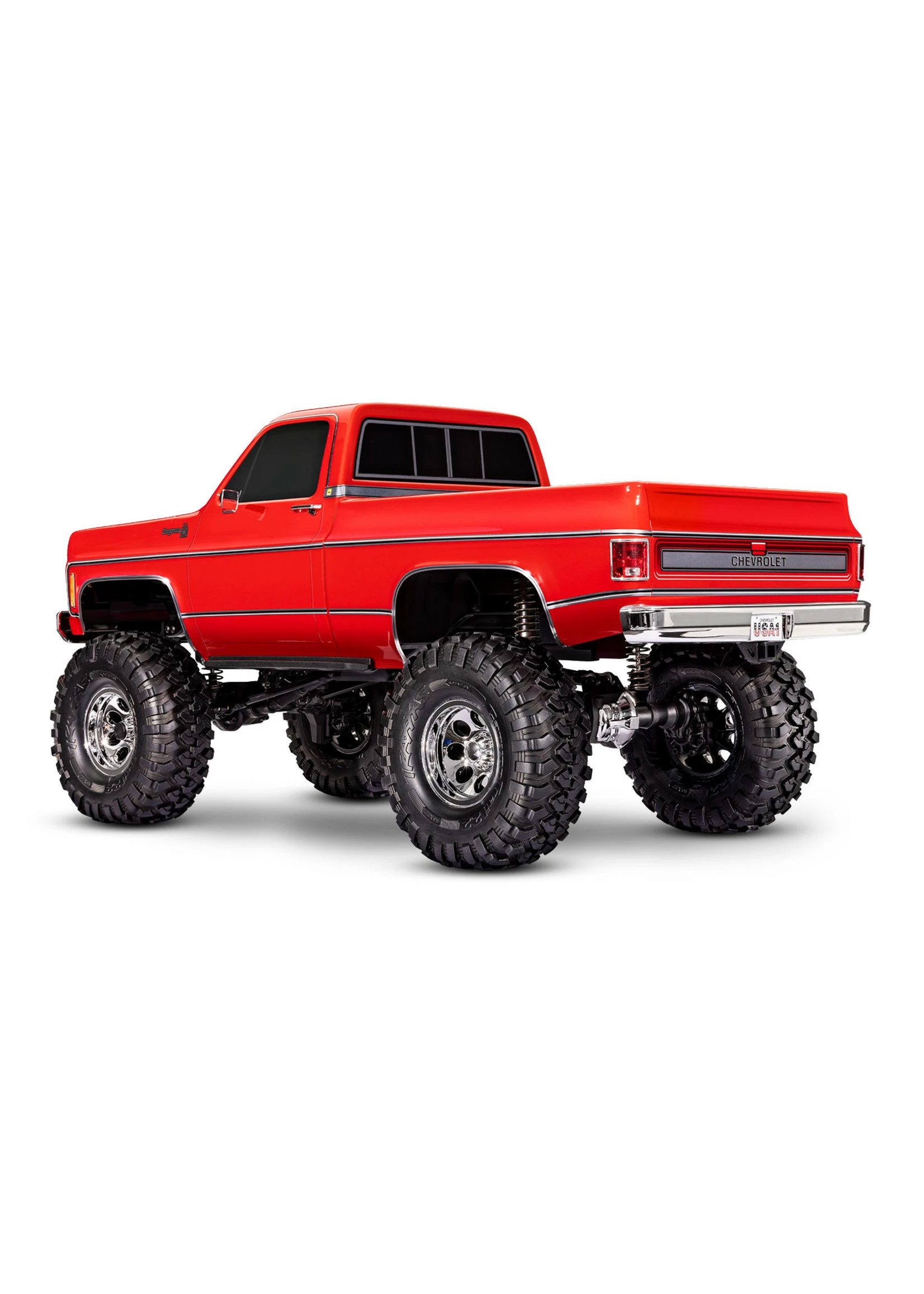

- Officially Licensed 1979 Chevrolet K10 Pickup Body
Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers

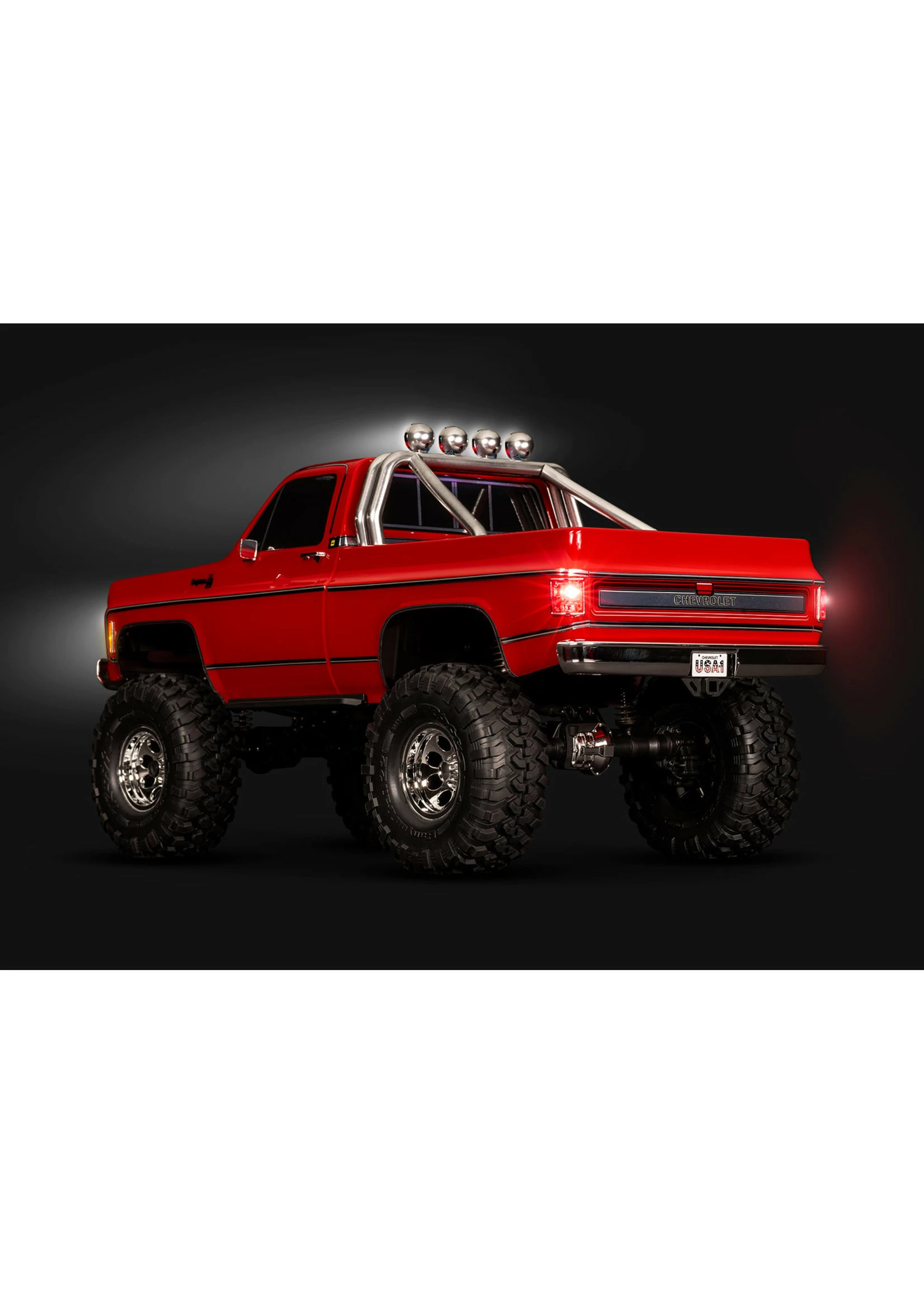

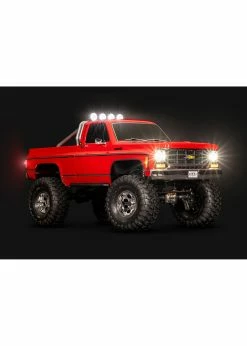

LED-ready headlights and tail lights
Authentic decal sheet
Full Nylon composite wheel wells and floor pans
Ā
- Clipless Body mounting
Clipless design for smooth body appearance
Rugged internal body cage for added rigidity
Body details mount directly to internal frame
Ā
- Trail-tuned XL-5 HV Waterproof Electronic Speed ControlĀ
Fully waterproof design
Five drive profiles
Traxxas EZ-SetĀ® one-button setup
Large, efficient heat sink
Wide voltage latitude 6ā7 cell NiMH (7.2ā8.4V) and 2ā3s LiPo (7.4ā11.1V)
Two stage low voltage protection (LVD)
Ā
- Motor
Powerful TitanĀ® 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh
Ā

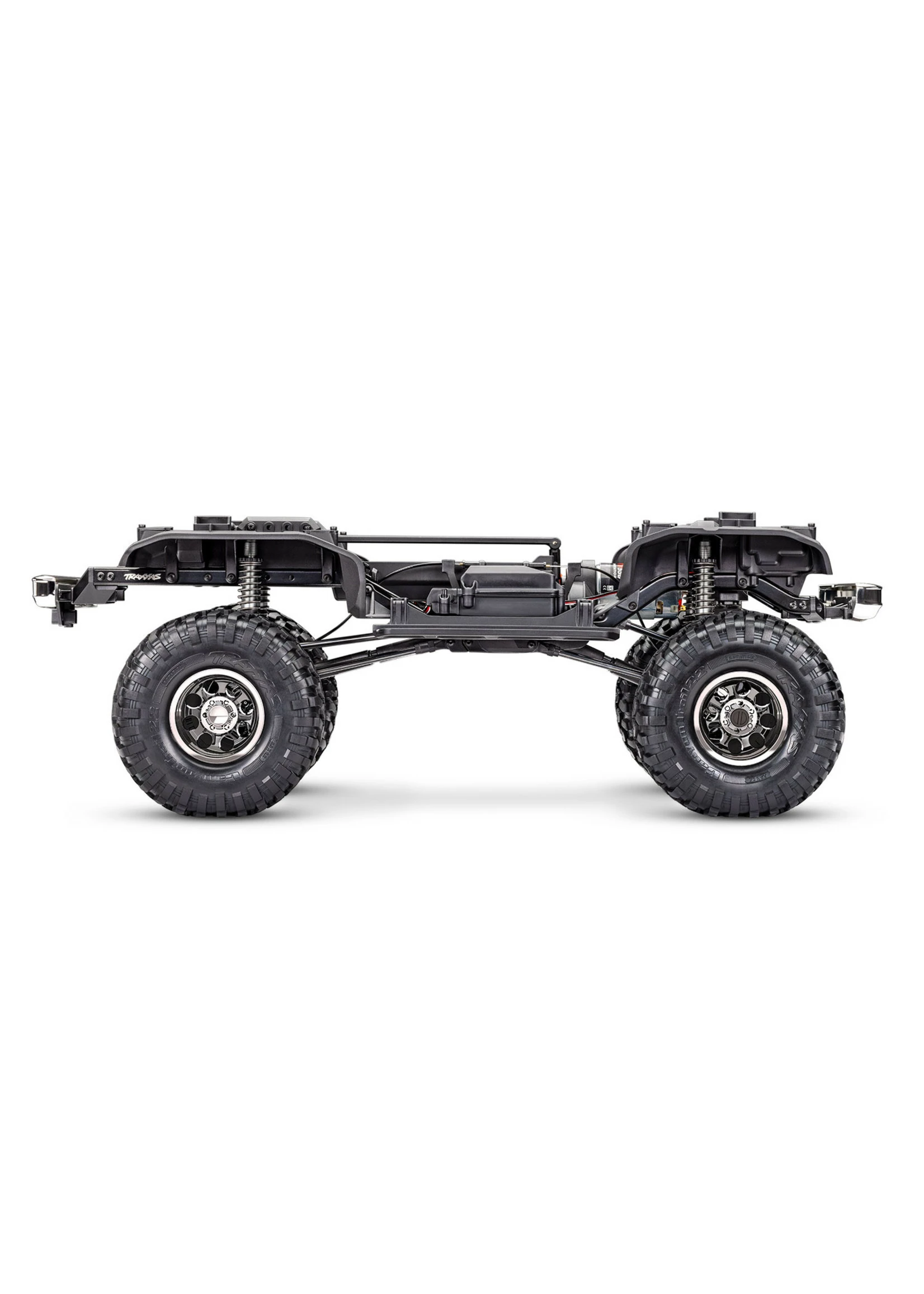

- Factory-Installed Long Arm Lift Kit
Increases ground clearance over 1ā
Maintains precise steering geometry
Accommodates oversize 2.2ā wheels and tires
Ā

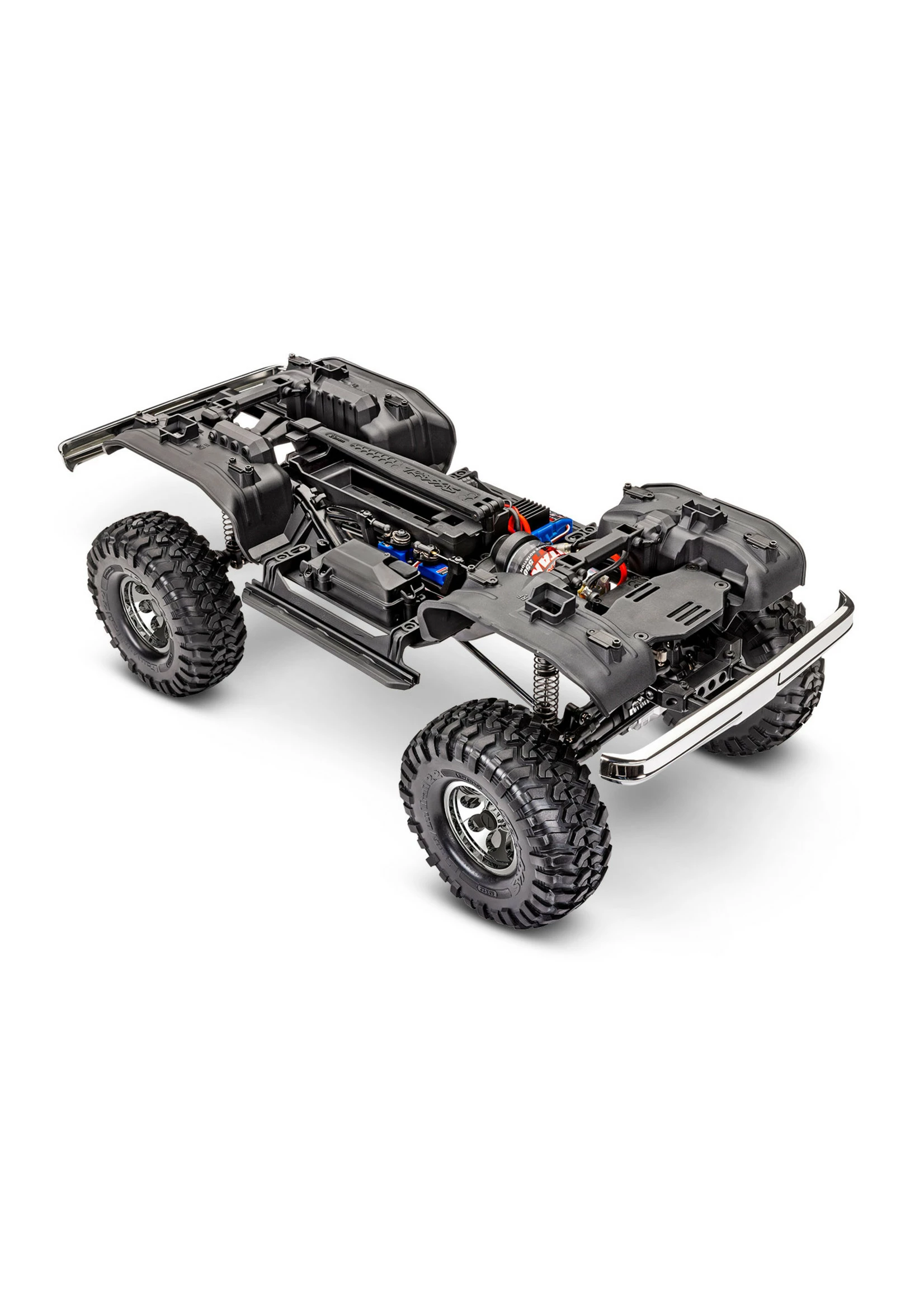

- Extended Wheelbase
Long 336 mm wheelbase for improved stability
Full-length 1.5 mm steel frame rails
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails
Ā
- Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts
Ā
- Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case
Ā
- Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
Ā
- Transmission
Two speed high/low range with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing
Ā
- Steering
Chassis mounted 2075X metal gear digital servo
Superior 45Ā° steering angle
Direct steering (no servo saver)
Steel servo horn
Steering geometry corrected for bump steer
Ā
- Suspension
Front ā 3 link with panhard
Rear ā Triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends
Ā
- Extended Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Extra-long aluminum bodies for greater articulation
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals
Ā
- Oversize Wheels and Tires
2.2ā 8-hole chrome mag wheels with hub inserts
Pre-mounted 2.2ā Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex
Ā
- Transmitter
TQiā¢ 2.4GHz 4-channel transmitter
Traxxas Link enabled
Telemetry ready #6533 5-channel micro receiver with failsafe
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
High 13ms frame rate and near-zero latency for responsive control
Ā
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Includes:
- TRX-4, Ready-To-RaceĀ® model
- XL-5 HV waterproof electronic speed control
- TitanĀ® 21T reverse rotation motor
- TQiā¢ 2.4GHz radio system with cruise control
- High quality maintenance tools
Needed To Complete:
- Batteries: TRX-4 accepts a wide variety of NiMH (4ā7 cell) and LiPo (2sā3s) batteries.
- Charger: Traxxas EZ-PeakĀ® Live charger is recommended for easy and fast charging performance (model #2971).
- Four AA alkaline batteries for the transmitter.
Specs:
| Length: | 22.20 inches (563mm) |
|---|---|
| Front Track: | 10.60 inches (270mm) |
| Rear Track: | 10.60 inches (270mm) |
| Center Ground Clearance: | 4 inches (99mm) |
| Weight (w/o battery): | 7.38lbs (3.35kg) |
| Height (overall): | 10.89 inches (277mm) |
| Wheelbase: | 13.23 inches (336mm) |
| Approach Angle: | 70Ā° |
| Departure Angle: | 52Ā° |
| Breakover Angle: | 67Ā° |
| Front Shock Length: | 4.33 inches (110mm) |
| Rear Shock Length: | 4.33 inches (110mm) |
| Front Wheels: | 2.2 x 1.34 inches (56 x 34mm) |
| Rear Wheels: | 2.2 x 1.34 inches (56 x 34mm) |
| Front Tires: | 5.3 x 2.14 inches (135 x 54mm) |
| Rear Tires: | 5.3 x 2.14 inches (135 x 54mm) |
| Hex Size: | 12mm |
| Speed Control: | XL-5 HV |
| Motor (electric): | 21T Reverse Rotation |
| Transmission: | 2-speed Hi-Lo, Remote Shifting |
| Gear Pitch: | 32P |
| Differential Type: | 4 Gear, Remote Locking |
| Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic āHill Holdā |
| Drive System: | Shaft Driven 4WD |
| Steering: | Chassis Mounted Servo |
| Servo: | 2075X Metal Gear |
| Transmitter: | TQiā¢ 2.4 GHz 4-Channel Transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
| Battery Tray: | 158.75 L x 47 W x 23/26mm H |
